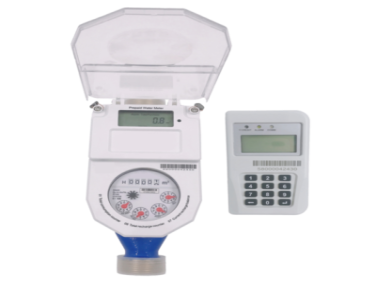

STS prepaid water meter (split type)

  • NG # 04262-HW-JRH-001

The STS Prepaid Water Meter (Split Type) is a smart metering solution designed for efficient water consumption management using prepaid technology. It features a split configuration with a metering unit and a Customer Interface Unit (CIU), enabling secure, remote access and convenient credit recharge via token-based systems. Ideal for residential and utility applications, it ensures accurate measurement, improved revenue control, and enhanced anti-tampering protection.

Manufactured By :
JiaRongHua
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The STS Prepaid Water Meter (Split Type) is an advanced smart water metering system developed to support modern utility management and prepaid billing. The system consists of two main components: a high-accuracy multi-jet water meter and a separate Customer Interface Unit (CIU). The CIU is typically installed inside the user’s premises, while the meter is securely placed outside, minimizing the risk of tampering and unauthorized access.

This meter operates using the Standard Transfer Specification (STS) protocol, allowing users to recharge water credit through encrypted 20-digit tokens. The keypad interface enables users to input tokens, check remaining credit, and monitor usage data easily. Utilities benefit from improved revenue protection through features such as low credit alarms, overdraft management, and step tariff configuration.

The system also supports advanced communication options such as RF, LoRa, or Bluetooth for integration with AMI/AMR systems, enabling remote monitoring and management. Anti-tamper mechanisms, including magnetic detection and automatic valve shut-off, ensure system integrity and prevent water misuse. Overall, this smart meter enhances operational efficiency, reduces non-revenue water losses, and offers a convenient user experience through mobile and remote recharge capabilities.

Specification

General Features

  • Type: STS prepaid split-type water meter
  • Metering Technology: Multi-jet, Class C accuracy
  • Standard Compliance: STS (Standard Transfer Specification)

System Components

  • Main water meter unit (installed externally)
  • Customer Interface Unit (CIU) with keypad (installed indoors)
  • RF wireless communication between meter and CIU

Functional Features

  • Token-based recharge (20-digit encrypted token)
  • Low credit warning alarm
  • Step tariff configuration (up to 3 pricing levels)
  • Overdraft (non-revenue water) management
  • Consumption and balance inquiry via short codes

Communication & Integration

  • Supports AMI/AMR systems
  • Optional communication: LoRa-RF / Bluetooth
  • Mobile payment and third-party API integration

Security & Protection

  • Built-in non-return valve (anti backflow)
  • Anti-tamper detection (magnetic field, cover opening)
  • Automatic valve shut off on tamper detection

User & Utility Benefits

  • Remote recharge via mobile or vending systems
  • Indoor CIU for convenience and security
  • Improved revenue collection and leak prevention
