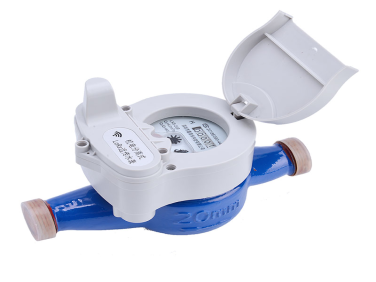

LoRa Smart Water Meter-No Valve

  • NG # 04270-HW-JRH-009

The LoRa Smart Water Meter (No Valve) is an advanced wireless water metering device that uses LoRa communication technology to enable remote reading of water consumption data. It is designed for smart utility management systems, providing accurate measurement, long-distance data transmission, and low-power operation without requiring a built-in control valve.

Manufactured By :
JiaRongHua
Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The LoRa Smart Water Meter (No Valve) is a modern metering solution developed for efficient and intelligent water usage monitoring. It integrates traditional mechanical water measurement with a LoRa-based wireless communication module, allowing real-time or scheduled remote data collection without manual meter reading.

This meter converts mechanical flow data into digital signals using a microelectronic control system and transmits the data over a long-range LoRa network to a central data collector or management platform. It is widely used in residential buildings, commercial properties, industrial facilities, and municipal water management systems where accurate consumption tracking is required.

Unlike valve-controlled models, this version does not include a built-in shut-off valve, making it suitable for applications focused purely on measurement and monitoring rather than remote water control. Its low-power design ensures long battery life and stable operation in remote or hard-to-access locations.

Specification

  • Product Type: Smart water meter (No valve version)
  • Communication Technology: LoRa (Long Range wireless transmission)
  • Function: Remote water consumption monitoring and data transmission
  • Meter Type: Mechanical base with electronic pulse conversion
  • Installation Type: Horizontal pipeline installation
  • Power Supply: Battery-powered low energy system
  • Battery Life: Typically 6–10 years depending on usage and configuration
  • Communication Range: Up to 1–3 km in urban areas and up to 5–7 km in open areas
  • Operating Pressure: Up to PN16 (1.6 MPa standard range)
  • Protection Class: IP68 (waterproof and dustproof)
  • Flow Measurement Accuracy: High precision mechanical measurement with digital transmission support
  • Frequency Band: 470–510 MHz / 868–915 MHz (region dependent)
  • Operating Temperature: Suitable for cold and hot water applications depending on model
  • Data Transmission: Automatic periodic or scheduled reporting via LoRa network
  • Application Areas: Residential buildings, apartments, commercial complexes, industrial water systems, municipal utilities
