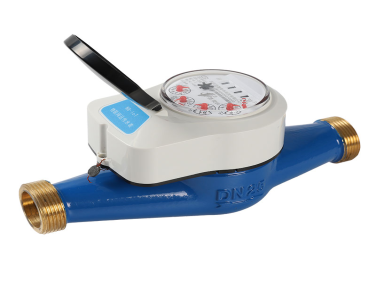

NB-IoT Direct Reading Remote Water Meter (DN15~DN25)

  • NG # 04280-HW-JRH-019

The NB-IoT Direct Reading Remote Water Meter (DN15–DN25) is a smart, high-precision water metering device designed for remote data collection and intelligent water management. It uses NB-IoT (Narrowband Internet of Things) technology to transmit water consumption data directly to a cloud platform without the need for intermediate collectors or concentrators. This enables efficient, low-cost, and fully automated meter reading for residential, commercial, and utility applications.

Manufactured By :
JiaRongHua
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NB-IoT Direct Reading Remote Water Meter is an advanced smart metering solution that integrates traditional mechanical water measurement with modern IoT communication technology. It is designed to simplify water utility management by enabling real-time remote monitoring, reducing manual meter reading, and improving operational efficiency.

Using NB-IoT cellular communication, the meter directly sends consumption data to a centralized system through telecom networks. This eliminates the need for local data concentrators, reducing installation complexity and maintenance costs. The device is built with low-power consumption architecture, ensuring long battery life of over 6 years under standard operating conditions.

It is widely used in smart city water systems, residential buildings, apartments, industrial facilities, and municipal water supply networks. The meter also supports prepaid management, alarm notifications, and remote configuration, making it a complete smart water management solution.

Specification

General Specifications

  • Product Type: NB-IoT Direct Reading Remote Water Meter
  • Nominal Diameter: DN15, DN20, DN25
  • Communication Technology: NB-IoT (Narrowband IoT)
  • Reading Method: Remote automatic data transmission
  • Application: Residential, commercial, industrial, municipal

Technical Parameters

  • Working Pressure: ≤ 1.0 MPa
  • Temperature Range: 0.1°C – 70°C (cold/hot water variants available)
  • Protection Class: IP68 (dustproof and waterproof)
  • Battery Life: ≥ 6 years (typical usage with daily reporting)
  • Power Supply: 3.6V lithium battery (low-power design)
  • Communication Frequency Band: NB-IoT (B3/B5/B8 supported)
  • Data Reporting: Automatic periodic upload (configurable)

Flow Measurement Parameters

  • DN15: Q3 = 2.5 m³/h, Q4 = 3.125 m³/h
  • DN20: Q3 = 4.0 m³/h, Q4 = 5.0 m³/h
  • DN25: Q3 = 6.3 m³/h, Q4 = 7.875 m³/h
  • Measurement Ratio (Q3/Q1): up to R160 depending on model
  • Accuracy Class: Class 2 standard (typical smart meter accuracy)
  • Pressure Loss Level: ≤ 0.063 MPa

Smart Functions

  • Remote automatic meter reading
  • Real-time data upload to cloud platform
  • Prepaid water management support
  • Low battery and fault alarm system
  • Abnormal consumption detection
  • Flexible pricing configuration by user category
  • Anti-tamper and anti-interference design
