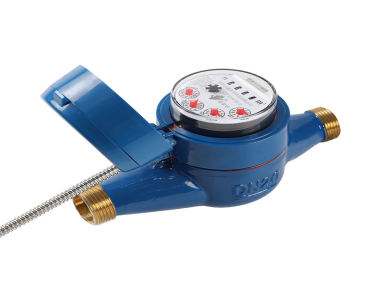

Photoelectric Direct Reading Remote transmission Water Meter

  • NG # 04281-HW-JRH-020

The Photoelectric Direct Reading Remote Transmission Water Meter is an advanced smart metering device that uses photoelectric technology for precise water consumption measurement. It enables accurate remote data reading through communication systems such as M-Bus or RS485, reducing manual meter reading efforts and improving efficiency in water management systems.

Manufactured By :
JiaRongHua
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Photoelectric Direct Reading Remote Transmission Water Meter is designed for modern smart water measurement systems where accuracy, reliability, and remote monitoring are essential. It combines traditional mechanical water metering with advanced photoelectric direct-reading technology, allowing real-time data acquisition without physical inspection.

The meter reads the position of the mechanical dial using a photoelectric sensor system and converts it into digital signals for remote transmission. This ensures high accuracy and eliminates cumulative reading errors commonly found in pulse-based systems.

It is widely used in residential, commercial, and industrial water supply systems as well as municipal water management projects. The device supports integration with centralized monitoring platforms, making it suitable for smart city and IoT-based water management solutions.

With strong anti-interference capability, stable communication performance, and low maintenance requirements, this water meter significantly reduces operational costs while improving billing accuracy and system efficiency.

Specification

  • Product Type: Photoelectric Direct Reading Remote Transmission Water Meter
  • Technology: Photoelectric direct reading (optical character wheel recognition)
  • Communication Interface: M-Bus / RS485
  • Reading Method: Direct reading of mechanical register via photoelectric sensor
  • Measurement System: Mechanical water meter with electronic data acquisition module
  • Accuracy Class: Class B / Class 2 (typical for smart water meters)
  • Pipe Size Range: DN15 to DN300 (varies by model series)
  • Installation Type: Horizontal / Vertical installation options available
  • Power Supply: Low-power electronic module (battery or external supply depending on configuration)
  • Protection Level: High protection against dust and moisture (suitable for field installation)
  • Operating Medium: Cold and hot water
  • Temperature Range: Up to 30°C (cold water) and higher ranges available for hot water versions
  • Working Pressure: Up to 1.0 MPa (model dependent)
  • Signal Transmission Distance: Suitable for long-distance communication via RS485/M-Bus systems
  • Features:
    • Remote automatic meter reading
    • No cumulative reading error
    • High anti-interference capability
    • Easy integration with smart metering systems
    • Stable and reliable data transmission
