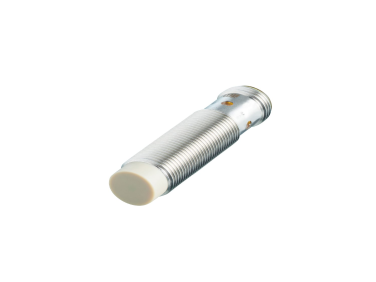

Inductive sensor IFT200

  • NG # 03679-HW-IFM-006

Manufactured By :
Ifm
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Wide operating temperature range High protection rating for the requirements of harsh industrial environments

Specification



Electrical designPNP
Output functionnormally open
Sensing range[mm]7
Housingthreaded type
Dimensions[mm]M12 x 1 / L = 50

Application

Special featureGold-plated contacts; Increased sensing range
ApplicationUse in hygienic areas / regular cleaning processes

Electrical data

Operating voltage[V]10...30 DC
Current consumption[mA]< 10
Protection classII
Reverse polarity protectionyes

Outputs

Electrical designPNP
Output functionnormally open
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]100
Switching frequency DC[Hz]800
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Detection zone

Sensing range[mm]7
Real sensing range Sr[mm]7 ± 10 %
Operating distance[mm]0...5.67
Increased sensing rangeyes

Accuracy / deviations

Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr]1...20
Switch point drift[% of Sr]-10...10

Operating conditions

Ambient temperature[°C]0...100
ProtectionIP 68; IP 69K; ("COP")

Tests / approvals

EMC
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-6 HF conducted10 V
EN 55011class B
MTTF[years]1134
UL approval
Ta0...40 °C
Enclosure typeType 1
power supplyLimited Voltage/Current
UL approval no.A001
File number ULE174191

Mechanical data

Weight[g]25.8
Housingthreaded type
Mountingnon-flush mountable
Dimensions[mm]M12 x 1 / L = 50
Thread designationM12 x 1
Materialshousing: stainless steel (316L/1.4404); sensing face: PEEK natural; LED window: PEI; lock nuts: stainless steel (316L/1.4404)
Tightening torque[Nm]15

Displays / operating elements

Display
switching status4 x LED, yellow

Accessories

Items supplied
lock nuts: 2

Remarks

Pack quantity1 pcs.

Electrical connection - plug

ConnectionConnector: 1 x M12; coding: A; Contacts: gold-plated
