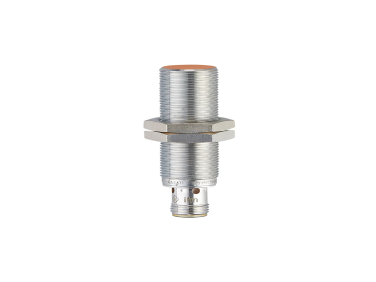

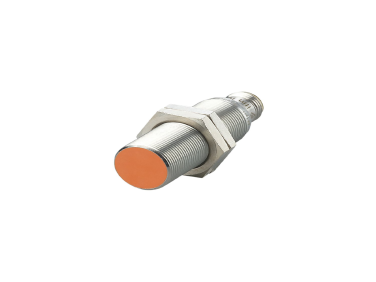

Inductive sensor IGS232

  • NG # 03675-HW-IFM-002

Manufactured By :
Ifm
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Suitable for industrial, mobile, cooling and lubricating applications. High protection rating for the requirements of harsh industrial environments. Flexible use thanks to large operating temperature range

Specification

Product characteristics

Electrical designPNP
Output functionnormally open
Sensing range[mm]8
Housingthreaded type
Dimensions[mm]M18 x 1 / L = 60

Application

Special featureGold-plated contacts; Increased sensing range
ApplicationSuitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation

Electrical data

Operating voltage[V]10...30 DC
Current consumption[mA]< 10
Protection classIII
Reverse polarity protectionyes

Outputs

Electrical designPNP
Output functionnormally open
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]100
Switching frequency DC[Hz]400
Short-circuit protectionyes
Overload protectionyes

Detection zone

Sensing range[mm]8
Real sensing range Sr[mm]8 ± 10 %
Operating distance[mm]0...6.48
Increased sensing rangeyes

Accuracy / deviations

Correction factorsteel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr]3...15
Switch point drift[% of Sr]-10...10

Operating conditions

Ambient temperature[°C]-40...85
ProtectionIP 65; IP 66; IP 67; IP 68; IP 69K

Tests / approvals

EMC
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-6 HF conducted10 V
EN 55011class B
Vibration resistance
EN 60068-2-6 Fc20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Shock resistance
EN 60068-2-27 Ea100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Continuous shock resistance
EN 60068-2-2740 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Fast temperature change
EN 60068-2-14 NaTA = -40 °C; TB = 85 °C; t1 = 30 min; t2 = < 10 s; 50 cycles
Salt spray test
EN 60068-2-52 Kbseverity level 5 (4 test cycles)
MTTF[years]1134
Embedded software includedno
UL approval
Ta-25...70 °C
Enclosure typeType 1
power supplyLimited Voltage/Current
UL approval no.A001
File number ULE174191

Mechanical data

Weight[g]48.3
Housingthreaded type
Mountingflush mountable
Dimensions[mm]M18 x 1 / L = 60
Thread designationM18 x 1
Materialshousing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

Display
switching status4 x LED, yellow

Accessories

Items supplied
lock nuts: 2

Remarks

Pack quantity1 pcs.

Electrical connection - plug

ConnectionConnector: 1 x M12; coding: A; Contacts: gold-plated
