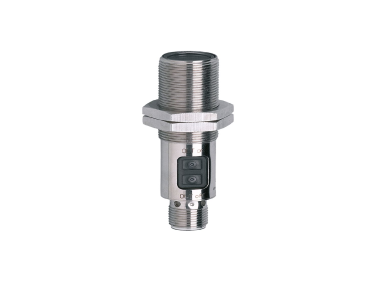

Retro-reflective sensor OGP500

  • NG # 03690-HW-IFM-017

Robust stainless steel housing for use in harsh industrial environments Very long range

Manufactured By :
Ifm
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Intuitive setting of the sensitivity via pushbutton Wide range of fixing components for quick and easy mounting Programmable light-on/dark-on mode

Specification



Type of lightred light
Housingthreaded type

Application

Special featurepolarisation filter
Function principleRetro-reflective sensor

Electrical data

Operating voltage[V]10...36 DC
Current consumption[mA]20
Protection classII
Reverse polarity protectionyes
Type of lightred light
Wave length[nm]624

Outputs

Electrical designPNP
Output functionlight-on/dark-on mode; (programmable)
Max. voltage drop switching output DC[V]2.5
Permanent current rating of switching output DC[mA]150; (200 (...60 °C))
Switching frequency DC[Hz]2000
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Detection zone

Range referred to prismatic reflector[m]0.03...5; (Prismatic reflector Ø 80 E20005)
Factory setting
dark-on mode
Range adjustableyes
Max. light spot diameter[mm]200
Light spot dimensions refer toat maximum range
Polarisation filter availableyes

Operating conditions

Ambient temperature[°C]-25...80
ProtectionIP 67

Tests / approvals

EMC
EN 60947-5-2
MTTF[years]431

Mechanical data

Weight[g]52.1
Housingthreaded type
Dimensions[mm]M18 x 1 / L = 72
Thread designationM18 x 1
Materialsstainless steel (316L/1.4404); PA; LCP; EPDM; TPU
Lens material
PMMA

Displays / operating elements

Display
switching status1 x LED, yellow

Accessories

Items supplied
lock nuts: 2

Remarks

Remarks
operating voltage "supply class 2" according to cULus
Pack quantity1 pcs.

Electrical connection

ConnectionConnector: 1 x M12; coding: A
