NG # 04178-HW-PEP-060
MF # NBN8-12GM50-E2

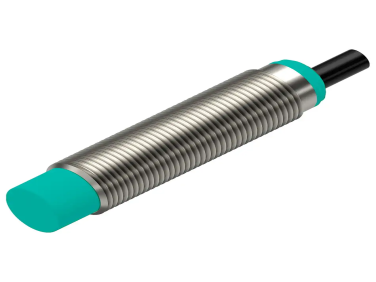

Industrial inductive proximity sensor model NBN8‑12GM50‑E2 from Pepperl+Fuchs designed for reliable non‑contact detection of metallic objects with an 8 mm sensing distance. It features a rugged M12 cylindrical housing, DC PNP normally open output, and is suitable for a variety of automation and sensing applications.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe Pepperl+Fuchs NBN8‑12GM50‑E2 is a robust inductive proximity sensor made for industrial environments where reliable detection of metallic targets is required. The sensor operates with a PNP normally open output and can detect objects up to 8 mm away without contact. The non‑flush, unshielded design makes it suitable for general sensing tasks where precise distance shielding is not critical. It supports a wide DC supply voltage range and includes protections against polarity reversal and short circuits for increased operational safety. The M12 threaded housing and multiple IP ratings ensure durability and resistance to harsh conditions such as dust and moisture, while the integrated LED helps with quick operational diagnostics. Typical applications include presence detection, machine automation, and position sensing in manufacturing processes.
· Sensor type: Inductive proximity sensor
· Model number: NBN8‑12GM50‑E2
· Switching function: Normally open (NO)
· Output type: PNP, 3‑wire configuration
· Rated operating distance: 8 mm
· Installation type: Non‑flush (unshielded)
· Output polarity: DC
· Operating voltage range: typically 6 36 V DC
· Switching frequency: up to approx. 1650 Hz
· Hysteresis typical: approx. 5 %
· Protection: reverse polarity and short‑circuit protected
· Switching state indicator: yellow LED
· Ambient temperature range: −40 85 °C
· Cable connection: attached cable, 2 m long (3‑core PVC)
· Housing material: brass with white bronze coating, sensing face PBT
· Degree of protection: IP65 / IP66 / IP67 / IP68

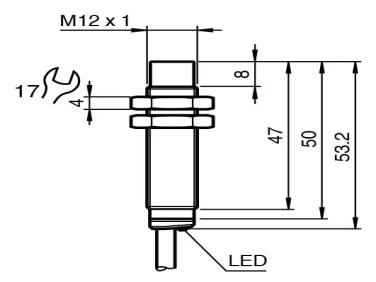

· Mounting: threaded M12 × 1 with 2 locking nuts included
· Cable diameter approx.: 4.3 mm with bending radius > 10× diameter
· Mass: approx. 84 g
