Pepperl+Fuchs Inductive sensor NBB1-4GM22-E2

  • NG # 04162-HW-PEP-044

  • MF # NBB1-4GM22-E2

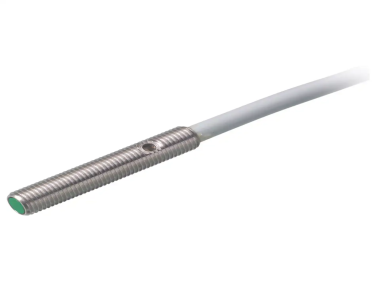

The NBB1‑4GM22‑E2 is a compact inductive proximity sensor designed for industrial automation. It features a flush mounting capability, operates on DC voltage, and provides reliable object detection with a PNP output in a small, robust housing suitable for harsh environments.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB1‑4GM22‑E2 is part of Pepperl+Fuchs’ inductive sensor range, offering precise detection of metallic targets within close proximity. Its miniature design allows for installation in space‑limited applications. The sensor is engineered for durability and consistent performance, with protection against reverse polarity and short circuits, as well as environmental resistance for industrial use.

Specification

General Characteristics

  • Sensing technology: Inductive proximity sensor
  • Switching function: Normally open (NO)

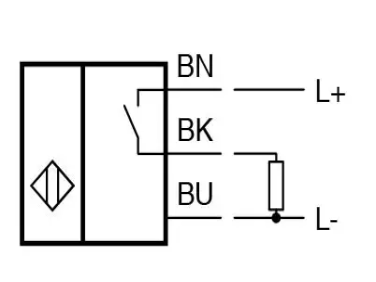

  • Output type: PNP three‑wire
  • Installation: Flush mounting
  • Rated operating distance: 1 mm

Electrical Ratings

  • Operating voltage: 10 … 30 V DC
  • Operating current: up to 100 mA
  • Output polarity: DC
  • Reverse polarity protection: Yes
  • Short‑circuit protection: Pulsing
  • Voltage drop: ≤ 3 V
  • Switching frequency: Up to 700 Hz

Environmental and Mechanical

  • Ambient temperature range: −25 … 70 °C
  • Degree of protection: IP67
  • Housing material: Stainless steel 1.4305 / AISI 303
  • Sensing face: PC
  • Cable connection: Pre‑wired cable, 2 m length, PUR material
  • Cable diameter: approx. 2.6 mm

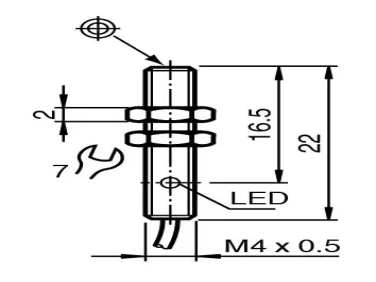

Physical Dimensions

  • Sensor body length: 22 mm
  • Diameter: 4 mm
