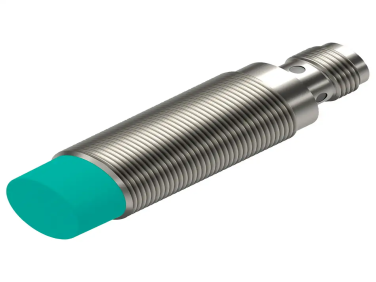

Pepperl+Fuchs Inductive sensor NBN12-18GM50-A2-V1

  • NG # 04171-HW-PEP-053

  • MF # NBN12-18GM50-A2-V1

A robust 4‑wire inductive proximity sensor with PNP output and a 12 mm sensing distance. Designed for reliable non‑contact detection of metal targets in industrial environments. Built‑in protections and extended voltage/temperature ranges support versatile applications.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBN12‑18GM50‑A2‑V1 is an inductive proximity sensor from Pepperl+Fuchs engineered for industrial automation needs. It features a cylindrical M18 housing and offers non‑flush mounting with a 12 mm sensing range. The sensor operates with a wide voltage range and high switching frequency, making it suitable for detecting metallic objects in machinery and process systems. It includes built‑in protections such as reverse polarity and short‑circuit protection. With high degree of protection ratings and a broad temperature range, it is suitable for demanding environments.

Specification

General Characteristics

  • Switching function: Complementary
  • Output type: PNP
  • Rated sensing distance: 12 mm
  • Mounting: Non‑flush
  • Output polarity: DC

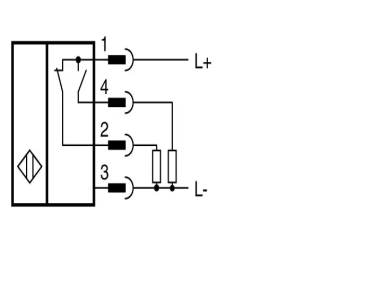

  • 4‑wire connection configuration
  • Scope of delivery includes 2 self‑locking nuts for mounting.

Electrical Ratings

  • Operating voltage: 6 … 36 V DC
  • Operating current: 0 … 200 mA
  • Reverse polarity protection: Yes
  • Short‑circuit protection: Pulsing
  • Voltage drop: ≤ 1 V
  • Off‑state current: max. 20 µA
  • No‑load supply current: ≤ 15 mA
  • Switching frequency: up to 1300 Hz
  • Hysteresis: typically 5 %
  • LED indicator for switching status.

Mechanical and Environmental

  • Housing material: Brass with white bronze coating
  • Sensing face: PBT (green)
  • Connector: M12 × 1 threaded plug (4 pins)
  • Degree of protection: IP65 / IP66 / IP67 / IP68
  • Ambient operating temperature: -40 … 85 °C
  • Storage temperature: -40 … 85 °C

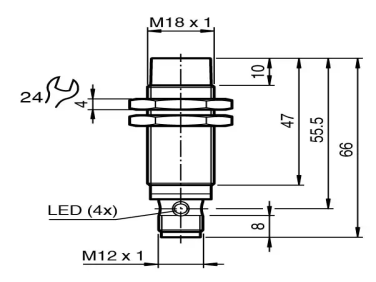

  • Dimensions: 66 mm length, 18 mm diameter
  • Weight: 58 g
  • Mounting with nuts, tightening torque ≤ 30 Nm.

Standards and Approvals

  • Compliance with EN IEC 60947‑5‑2
  • cULus Listed (General Purpose, Class 2 Power Source)
  • Protection class II
  • Marine approval: DNVGL TAA00003AK.
