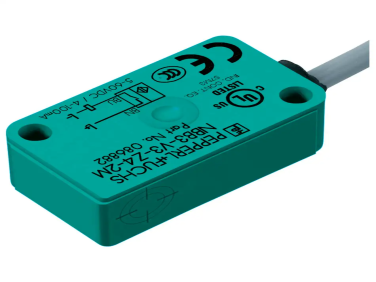

Pepperl+Fuchs Inductive sensor NBB3-V3-Z4

  • NG # 04168-HW-PEP-050

  • MF # NBB3-V3-Z4

The NBB3-V3-Z4 is an inductive proximity sensor designed for reliable flush installation in industrial environments. It offers a 3 mm detection range with two‑wire DC operation and includes protection features such as reverse polarity and inductive overvoltage protection. The sensor is suitable for automated sensing applications requiring compact, robust detection performance up to IP67 protection class.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB3-V3-Z4 Inductive Sensor is a compact sensing component from Pepperl+Fuchs engineered for proximity detection in industrial systems. It operates on a two‑wire DC configuration and is optimized for flush mounting. Key performance characteristics include a 3 mm sensing distance, high switching frequency, and built‑in protection against reverse polarity and inductive overvoltage. Its rugged housing and IP67 rating make it suitable for demanding conditions requiring reliable object detection.

Specification

General Specifications

  • Switching function: Normally open (NO)

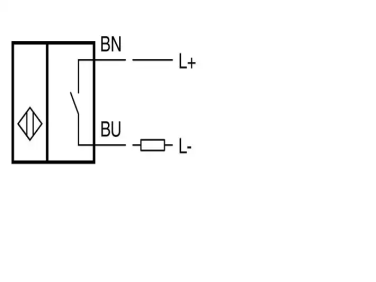

  • Output type: Two‑wire DC
  • Rated operating distance: 3 mm
  • Installation: Flush
  • Output polarity: DC
  • Assured operating distance: 0 … 2.4 mm
  • Actual operating distance: 2.7 … 3.3 mm (typical)

Electrical Specifications

  • Operating voltage: 5 … 60 V DC
  • Switching frequency: 0 … 2000 Hz
  • Operating current: 4 … 100 mA
  • Voltage drop: ≤ 4 V

Protection Features

  • Reverse polarity protected
  • Inductive overvoltage protection included

Environmental

  • Ambient temperature range: -25 … 85 °C
  • Degree of protection: IP67

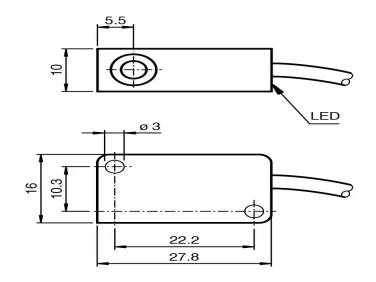

Mechanical

  • Housing material: PBT
  • Sensing face: PBT
  • Cable connection: Cable with wire end ferrules
  • Cable diameter: 3 mm ± 0.2 mm
  • Sensor mass: 7.5 g
