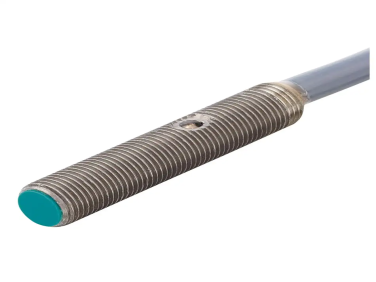

Pepperl+Fuchs Inductive sensor NBB0,8-5GM25-E2

  • NG # 04161-HW-PEP-043

  • MF # NBB0,8-5GM25-E2

The Pepperl+Fuchs NBB0,8‑5GM25‑E2 is a compact inductive proximity sensor with a rated operating distance of 0.8 mm, designed for reliable target detection in industrial applications. It features a DC PNP output, reverse polarity protection, short‑circuit protection, and an integrated switching state indicator.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB0,8‑5GM25‑E2 is an inductive sensor suitable for detecting metallic targets with high repeatability and robustness. Its small flush mounting design makes it ideal for integration into space‑constrained environments. Built to meet industry standards, this sensor offers protection against reverse polarity and short circuits, and provides visual indication of switching status.

Specification

·  Switching function: Normally open (NO)

·  Output type: PNP

·  Rated operating distance: 0.8 mm

·  Installation: Flush mounting

·  Output polarity: DC

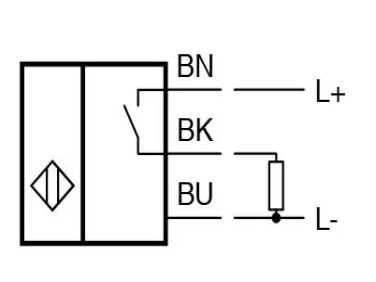

·  Three‑wire connection
Electrical

·  Operating voltage (UB): 10 ... 30 V

·  Switching frequency: up to 3000 Hz

·  Reverse polarity protection

·  Short‑circuit protection with pulsing

·  Voltage drop (Ud): ≤ 3 V

·  Operating current: up to 200 mA

·  No‑load supply current: ≤ 10 mA
Mechanical and Environmental

·  Switching state indicator LED (yellow)

·  Ambient temperature: −25 ... 70 °C

·  Housing material: Stainless steel 1.4305 / AISI 303

·  Sensing face material: PC

·  Degree of protection: IP67

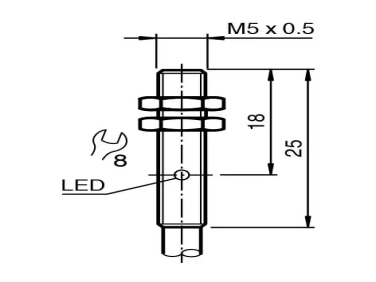

Physical

·  Cable diameter: 3.5 mm ± 0.2 mm

·  Bending radius: > 10× cable diameter

·  Number of cores: 3
