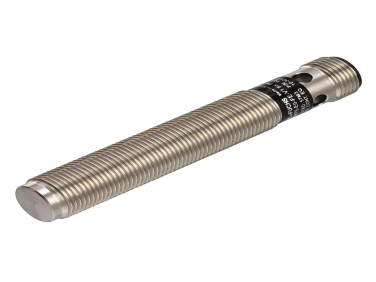

Pepperl+Fuchs Inductive sensor NMB5-12GM65-E2-V1

  • NG # 04158-HW-PEP-040

  • MF # NMB5-12GM65-E2-V1

The Pepperl+Fuchs NMB5‑12GM65‑E2‑V1 is an inductive proximity sensor designed for reliable object detection in industrial environments. It features a robust stainless steel sensing face and a compact design with a 5 mm rated operating distance, suitable for flush mounting. The device offers standard PNP output and is suitable for a wide range of automation applications where non‑contact detection of metallic targets is required.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NMB5‑12GM65‑E2‑V1 inductive sensor is a cylindrical, three‑wire proximity sensor engineered for durable performance in industrial automation systems. With a stainless steel housing and high ingress protection ratings, this sensor is well suited for harsh production environments. It supports standard PNP switching and includes features like short‑circuit and reverse polarity protection. The sensor’s flush install capability and compact size make it flexible for integration into machines and control systems requiring precise metal detection.

Specification

General Characteristics

  • Type: Inductive proximity sensor (metal detection)
  • Rated operating distance: 5 mm
  • Mounting: Flush

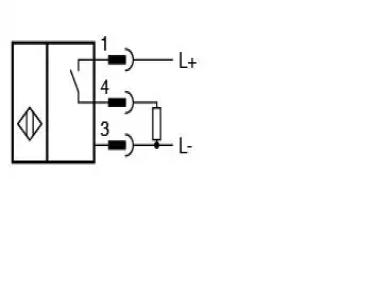

  • Output type: PNP, 3‑wire
  • Switching function: Normally open (NO)
  • Output polarity: DC

Electrical Specifications

  • Operating voltage: 10 … 30 V DC
  • No‑load supply current: ≤ 15 mA
  • Operating current: ≤ 200 mA (reduced above 50 °C)
  • Voltage drop: ≤ 2 V DC
  • Reverse polarity protection: Yes
  • Short‑circuit protection: Pulsing

Performance Parameters

  • Reduction factors for non‑ferrous metals (Al, Cu, etc.) specified
  • Switching frequency: up to 360 Hz
  • Hysteresis: 3 … 15 % typical

Mechanical and Environmental

  • Housing material: Stainless steel 1.4305 / AISI 303
  • Sensing face: Stainless steel
  • Degree of protection: IP67 / IP68 / IP69K (depending on cable)
  • Connector: M12 × 1, 4‑pin

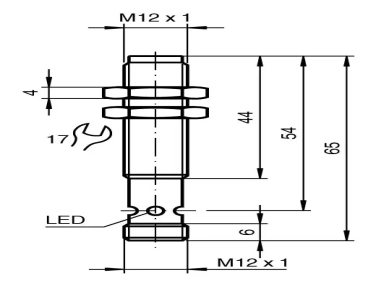

  • Dimensions: 65 mm length, 12 mm diameter
  • Ambient temperature range: −25 … 70 °C

Standards and Approvals

  • Meets EN IEC 60947‑5‑2 standard
  • UL approval (general purpose
