Pepperl+Fuchs Inductive sensor NBB15-30GM50-E2-M

  • NG # 04163-HW-PEP-045

  • MF # NBB15-30GM50-E2-M

The Pepperl+Fuchs NBB15‑30GM50‑E2‑M is an inductive proximity sensor designed for reliable object detection in industrial environments. It offers a 15 mm flush switching distance, robust environmental resistance, and multiple global approvals suitable for harsh and safety‑critical automation applications.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB15‑30GM50‑E2‑M inductive sensor from Pepperl+Fuchs is engineered for high‑performance proximity sensing in factory automation. It supports standard DC operation with noise immunity and an extended operating temperature range. The sensor features a durable housing with high ingress protection and is suitable for demanding industrial conditions.

Specification

General Characteristics

  • Inductive proximity sensor for flush mounting.
  • Sensing distance (rated): 15 mm.

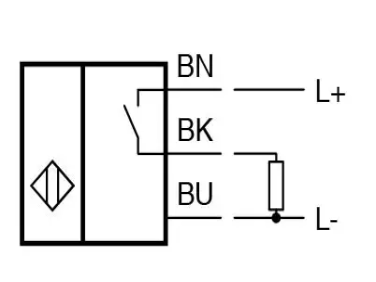

  • Output type: DC, 3‑wire, PNP.
  • Switching function: Normally Open (NO).
  • Reverse polarity protection and short‑circuit protection included.

Electrical Specifications

  • Operating voltage range: 5 … 60 V DC.
  • Maximum switching frequency up to 600 Hz.
  • Output current capability up to approx. 200 mA.

Mechanical and Environmental Features

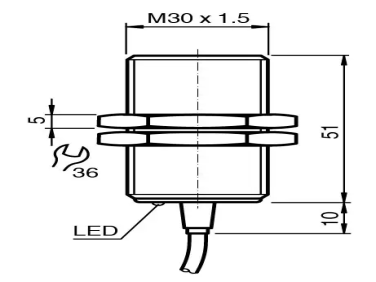

  • Housing material: Brass, nickel‑plated; sensing face PBT.
  • Degree of protection: IP68 / IP69K (high resistance to dust and liquid ingress).
  • Extended ambient temperature range: −40 … 85 °C.
  • Cable connection with PUR cable, approx. 2 m length.

Performance and Approvals

  • Increased electrical noise immunity up to 100 V/m.
  • High resistance to vibration and mechanical stress.
  • Multiple international certifications including CE, cULus, CCC, and E1‑type approval.
