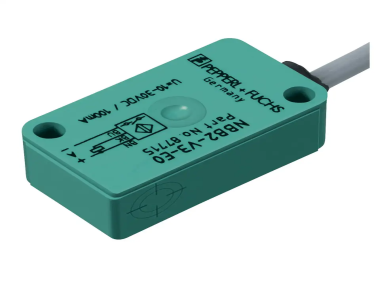

Pepperl+Fuchs Inductive sensor NBB2-V3-E2

  • NG # 04165-HW-PEP-047

  • MF # NBB2-V3-E2

The NBB2‑V3‑E2 is a compact, 2 mm flush‑mounted 3‑wire DC inductive proximity sensor designed for basic object detection. It features a normally open output with PNP polarity and offers reliable operation in industrial environments with IP67 protection.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB2‑V3‑E2 inductive sensor is part of Pepperl+Fuchs’ basic series of proximity sensors and is engineered for simple and robust non‑contact detection of metallic targets. It operates on DC power with reverse polarity and short‑circuit protection, and includes an integrated LED indicator for switching state. The sensor has a compact housing with high environmental resistance (IP67), making it suitable for general industrial applications involving small‑distance detection tasks.

Specification

General



  • Switching function: Normally open (NO)

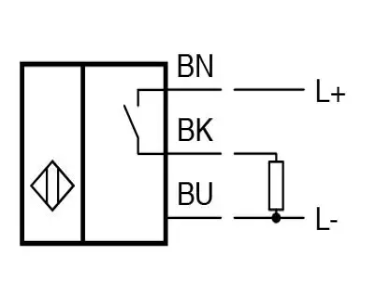

  • Output type: PNP, 3‑wire DC
  • Rated operating distance: 2 mm (flush)
  • Output polarity: DC
  • Assured operating distance: 0 … 1.62 mm

Electrical



  • Operating voltage: 10 … 30 V DC
  • Switching frequency: 0 … 1000 Hz
  • Operating current: 0 … 100 mA
  • Off‑state current: 0 … 0.5 mA typical
  • No‑load supply current: ≤ 15 mA
  • Reverse polarity protection: Yes
  • Short‑circuit protection: Pulsing
  • Voltage drop: ≤ 3 V

Indicators



  • Switching state indicator: LED (yellow)

Mechanical / Environmental



  • Ambient temperature: − 25 … 70 °C
  • Housing material: PBT
  • Sensing face: PBT
  • Degree of protection: IP67
  • Cable connection: Cable with wire end ferrules
  • Cable diameter: 3 mm + 0.3 mm

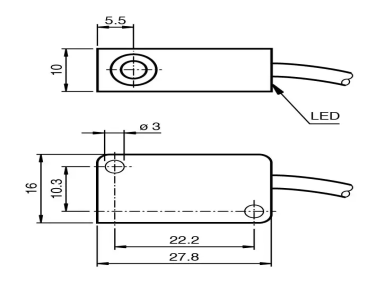

Dimensions



  • Height: 10.2 mm
  • Width: 27.8 mm
  • Length: 16 mm

Certifications / Compliance



  • Standard conformity: EN IEC 60947‑5‑2
  • Approvals: cULus Listed (general purpose)
