Pepperl+Fuchs Inductive sensor NBN25-30GM50-E2-V1

  • NG # 04173-HW-PEP-055

  • MF # NBN25-30GM50-E2-V1

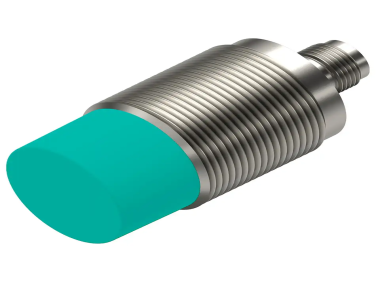

The NBN25‑30GM50‑E2‑V1 is an industrial inductive proximity sensor with a PNP output and non‑flush mounting design. It detects metal objects without contact and is suitable for demanding automation applications with extended temperature and voltage ranges. The sensor provides reliable switching performance with robust protection ratings for diverse environments.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBN25‑30GM50‑E2‑V1 is a non‑flush inductive proximity sensor designed for industrial automation to detect metallic targets at a rated distance of 25 mm. It features a three‑wire PNP output configuration, durable construction with brass and PBT materials, and a high degree of ingress protection (IP65 – IP68). The sensor supports a wide supply voltage and operating temperature range, offers reverse polarity and short‑circuit protection, and complies with key international standards. It includes mounting hardware and is suitable for general‑purpose switching applications.

Specification

General

  • Type: Inductive proximity sensor model NBN25‑30GM50‑E2‑V1
  • Switching Function: Normally open (NO)

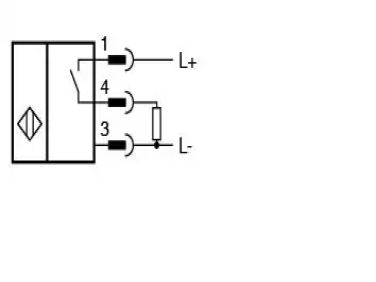

  • Output Type: PNP, 3‑wire
  • Rated Operating Distance: 25 mm (non‑flush)
  • Output Polarity: DC
  • Assured Operating Distance: 0 … 20.25 mm
  • Actuating Element Material: Mild steel (75 mm x 75 mm x 1 mm)

Electrical

  • Operating Voltage Range: 6 … 36 V
  • Switching Frequency: 0 … 400 Hz
  • Hysteresis: typ. 5 %
  • Reverse Polarity Protection: Yes
  • Short‑Circuit Protection: Yes (pulsing)
  • Voltage Drop: ≤ 1 V
  • Operating Current: 0 … 200 mA
  • Off‑State Current: max. 20 µA
  • No‑Load Supply Current: ≤ 10 mA
  • Indicator: Multihole LED, yellow

Compliance and Approvals

  • Standards: EN IEC 60947‑5‑2
  • Protection Class: II (rated insulation voltage 36 V)
  • Rated Impulse Withstand Voltage: 500 V
  • UL Approval: cULus Listed (General Purpose, Class 2)
  • CCC Approval: Not mandatory for ≤ 36 V
  • Marine Approval: DNVGL TAA00003AK

Ambient Conditions

  • Operating Temperature: ‑40 … 85 °C
  • Storage Temperature: ‑40 … 85 °C

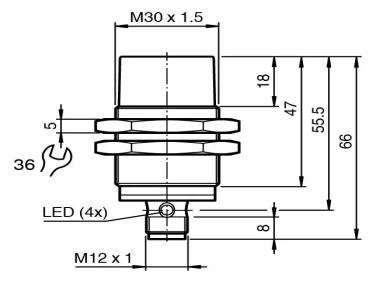

Mechanical

  • Housing Material: Brass, white bronze coated
  • Sensing Face Material: PBT, green
  • Protection Rating: IP65 / IP66 / IP67 / IP68
  • Connector Thread: M12 x 1
  • Number of Pins: 3
  • Mass: 136 g
  • Dimensions: Length 66 mm, Diameter 30 mm
  • Mounting: With nuts, M30 (tightening torque ≤ 30 Nm)

General Information

  • Scope of Delivery: Includes 2 self‑locking nuts
