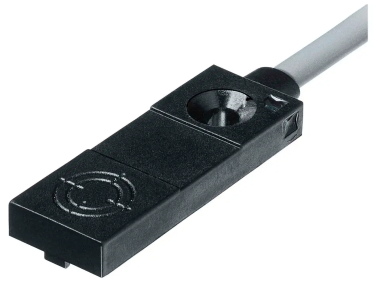

Pepperl+Fuchs Inductive sensor NBN4-F29-E2

  • NG # 04176-HW-PEP-058

  • MF # NBN4-F29-E2

The Pepperl+Fuchs NBN4‑F29‑E2 is a rugged inductive proximity sensor with a 4 mm sensing range and PNP 3‑wire DC output. Designed for non‑flush mounting, this sensor offers reliable object detection with high switching frequency capability and integrated protections including reverse polarity and short‑circuit protection. It features a robust IP67 housing and LED switching indicator for status feedback.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBN4‑F29‑E2 inductive sensor is engineered for industrial proximity sensing tasks where detection of metallic objects is required without physical contact. With a nominal sensing distance of 4 mm, this non‑flush mount sensor operates on a wide DC voltage range and supports fast switching up to 1000 Hz, making it suitable for dynamic automation environments. Built‑in protective features such as reverse polarity protection and current limiting enhance durability in typical factory settings. Its compact IP67 rated housing and clear LED indicator simplify installation and operation tracking, while compliance with international standards (EN IEC 60947‑5‑2 and cULus) ensures suitability for global applications.

Specification

General

  • Product type: Inductive sensor, model NBN4‑F29‑E2
  • Sensing type: Electronic proximity sensing
  • Mounting style: Non‑flush
  • Switching function: Normally open (NO)

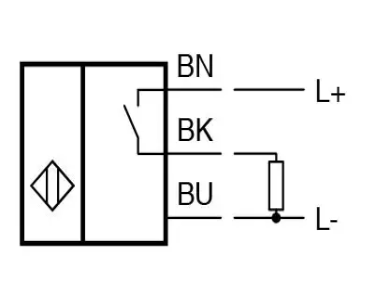

  • Output type: PNP, 3‑wire DC

Electrical

  • Rated operating distance: 4 mm
  • Operating voltage range: 4.75 … 30 V DC
  • Switching frequency: Up to 1000 Hz
  • Hysteresis (typical): approx. 5%
  • Reverse polarity protection: Yes
  • Short‑circuit protection: Pulsing
  • Voltage drop: ≤ 3 V
  • Output current range: 0 … 100 mA

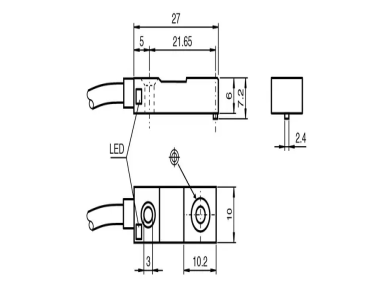

Mechanical / Environmental

  • Assured operating distance: 0 … 3.24 mm
  • Ambient operating temperature: –25 … 70 °C
  • Storage temperature: –40 … 85 °C
  • Housing material: PPS
  • Degree of protection: IP67
  • Connection: Cable with wire end ferrules

Indicators

  • Switching state indicator: LED (yellow)

Standards / Approvals

  • Conforms to EN IEC 60947‑5‑2
  • UL approval: cULus Listed for general purpose circuits
