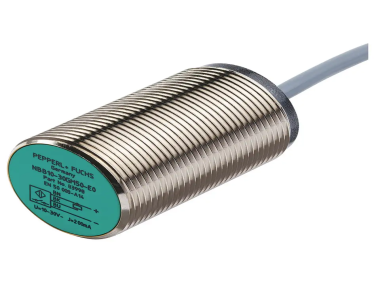

Pepperl+Fuchs Inductive sensor NBB15-30GM50-US

  • NG # 04164-HW-PEP-046

  • MF # NBB15-30GM50-US

The NBB15‑30GM50‑US is a two‑wire inductive proximity sensor designed for flush mounting. It detects metallic targets within a 15 mm range and supports both AC and DC operation. The sensor is ruggedly built for industrial environments with IP67 protection and includes indicators for operating and switching states.

Manufactured By :
Pepperl+Fuchs
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The NBB15‑30GM50‑US Inductive sensor is part of Pepperl + Fuchs’ industrial proximity sensor series, offering reliable metal object detection for automation applications. With a 15 mm sensing distance and 2‑wire AC/DC output, this sensor combines robust mechanical and electrical specifications with broad ambient condition tolerances and industry‑standard approvals.

Specification

General Characteristics

  • Sensor type: Inductive proximity sensor for metal detection
  • Mounting: Flush
  • Rated operating distance (sn): 15 mm

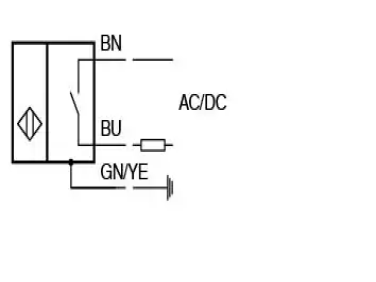

  • Output type: Two‑wire AC/DC

Electrical Specifications

  • Operating voltage (Ue): 20 … 250 V AC/DC
  • Rated operating current (Ie): 4 … 500 mA AC/DC
  • Voltage drop (Ud): ≤ 8 V
  • Short‑circuit protection: Yes
  • Reverse polarity protection: Yes
  • Operating frequency: 30 Hz
  • Reduction factors:
    • Steel (rAl): 0.5
    • Copper (rCu): 0.45
    • Stainless steel 304 (r304): 0.75

Indicators

  • Operating voltage indicator: LED, green
  • Switching state indicator: LED, yellow

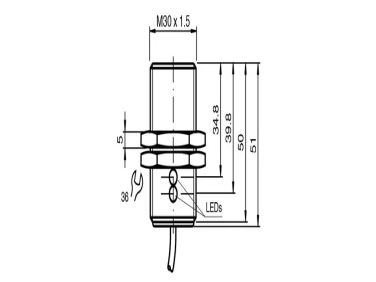

Mechanical & Environmental

  • Connection: Cable with ferrules, 2 m length
  • Housing material: Brass, nickel‑plated
  • Sensing face: PBT
  • Degree of protection: IP67
  • Ambient temperature range: ‑25 … 70 °C
  • Storage temperature range: ‑40 … 85 °C

Certifications & Compliance

  • Meets EN IEC 60947‑5‑2 standards
  • Approvals: cULus Listed, CSA, CCC
