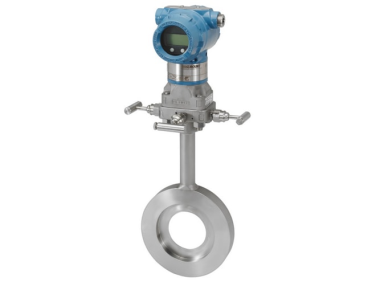

Rosemount 3051CFC Compact Orifice Flow Meter

  • NG # 04215-HW-EMR-051

The Rosemount 3051CFC Series compact orifice flow meter is a complete flow monitoring system designed for closed loop control and general purpose monitoring applications. By integrating the 3051C pressure transmitter with the 405 Compact Orifice primary element, Rosemount has created a high performance, direct mount differential pressure flow meter lowering the installed cost by eliminating the need for fittings, impulse tubing, valves, adapters and manifolds by providing a single device packaged together for simplified installation.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Rosemount 3051CFC Series compact orifice flow meter is ideal for the volumetric measurement of relatively clean liquids, while also being suitable for gases and steam. Measurements are repeatable and accurate up to 1.65% at 8:1 turndown. A centering mechanism helps eliminate improper installation which can result in significant errors in readings. The 3051CFC is available for line sizes from 1/2 to 12 inches and pressures to 600# (PN 100). A wide range of options are available to customize the system to nearly any application

Specification

  • 1/2 to 12 inch pipe size
  • Available up to ANSI 600# pressure rating
  • Follows industry standard ASME & ISO corner tap design
  • Installation between existing raised-faced flanges
  • Self centering ring ensure optimal accuracy
  • Up to 1.65% volumetric flow accuracy at 8:1 turndown
  • 5-year stability
  • 100 millisecond Response Time
  • Coplanar platform for installation flexibility
  • HART, FOUNDATION fieldbus, or Profibus protocol
