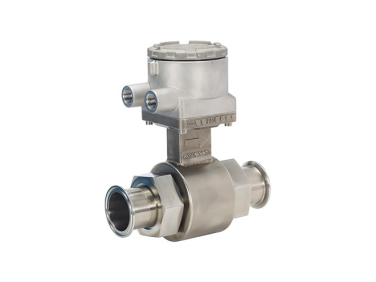

Rosemount 8721 Hygienic Flowtube Sensor

  • NG # 04219-HW-EMR-055

The Rosemount 8721 hygienic flowtube sensor is specifically designed for the demanding applications in food, beverage and life sciences. The robust, all-welded, full diameter Rosemount 8721 sensor is constructed of FDA approved materials. The 8721 is authorized to display the 3-A Symbol, is certified by EHEDG and is approved for use in FDA Grade A milk meter based timing loops (M-b 350).

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Rosemount magmeter systems use pulsed DC technology that provides continuous automatic zeroing to compensate for variations in the process environment. Process liquid must have a conductivity of 5 microsiemens/cm (5 micromhos/cm) or greater. The Rosemount 8721 is capable of processing signals from fluids that are travelling both forward and reverse flow in all sensor sizes.

Specification

  • Hygienic design
  • 0.5% standard accuracy
  • 0.5 to 4 inch sizes available
  • ±0.1% repeatability of reading
  • 0.2 seconds response time
  • Pulsed DC coil drive power
  • Sensor coil resistance: 5Ω to 10Ω (line size dependent)
