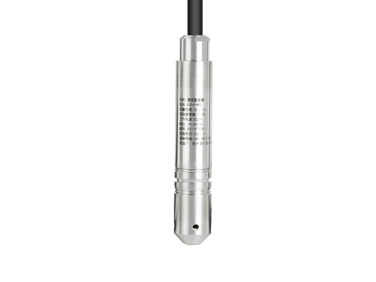

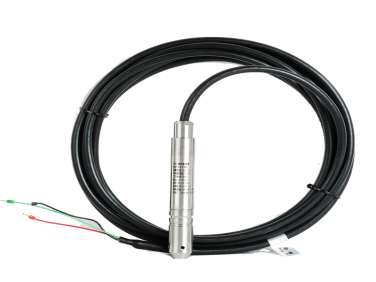

SUP-P260-M3 Submersible level meter

  • NG # 04103-HW-SUPMEA-058

  • MF # SUP-P260-M3

The SUP‑P260‑M3 Level Meter is a fully sealed hydrostatic submersible sensor designed for continuous liquid level measurement. It operates based on hydrostatic pressure and is suitable for measuring water levels, well depths, groundwater levels, and similar applications. The robust stainless steel construction and multiple output signal options allow integration with control systems.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑P260‑M3 is a hydrostatic level transmitter engineered for submerged level measurement in various liquids. Its sealed design protects internal components during continuous submersion. The sensor measures hydrostatic pressure exerted by a liquid column and converts it into standard electrical signals compatible with industrial control systems.

This unit offers flexible output configurations (current and voltage), making it adaptable to different monitoring setups. Built with corrosion‑resistant stainless steel materials, the SUP‑P260‑M3 performs reliably within a wide temperature range and can withstand pressure overloads up to 150 % of full scale. It is suitable for applications such as open water level monitoring, groundwater measurement, and well depth sensing.

Specification

·  Model: SUP‑P260‑M3 water level sensor

·  Measuring range: 0 m ~ 5 m (also configurable up to 300 m)

·  Display resolution: 0.5 % F.S.

·  Ambient temperature range: ‑10 °C ~ 85 °C

·  Medium temperature range: ‑20 °C ~ 65 °C

·  Output signal options: 4‑20 mA, 0‑5 V, 0‑10 V

·  Pressure overload tolerance: 150 % F.S.

·  Power supply: 24 VDC or 12 VDC

·  Overall material: Core made of 316L stainless steel; shell made of 304 stainless steel

·  Completely sealed submersible design for immersion in liquids

·  Small diameter and full‑welded structure with removable protective cap
