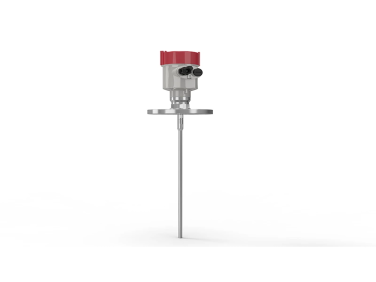

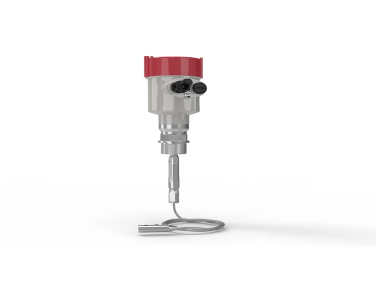

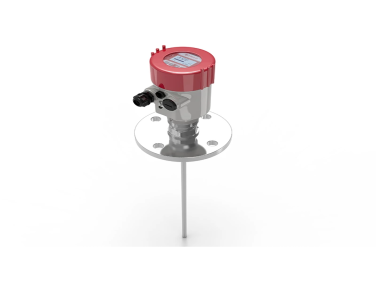

SUP-RD701 Guided wave radar level meter

  • NG # 04100-HW-SUPMEA-055

  • MF # SUP-RD701

The SUP‑RD701 Guided Wave Radar Level Meter is an industrial sensor designed for continuous level measurement of both liquids and bulk solids up to 30 m. It uses guided wave radar technology with microwave pulses along a cable or rod probe to detect material surfaces reliably in varied process environments. The unit supports multiple communication outputs, versatile power configurations, and robust process conditions.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑RD701 is a guided wave radar level meter suitable for industrial applications requiring accurate and continuous level monitoring of liquids and solids. It operates within a measurement range of up to 30 meters and offers robust performance across a wide temperature and pressure range. The level meter features optional thread or flange process connections and delivers standard analog and digital outputs for integration with control systems. Designed for durability, the instrument has high ingress protection and is compatible with harsh environments. Variable accuracy levels across measurement ranges ensure reliable readings for different tank sizes and materials. Whether used with cable or rod probes, the SUP‑RD701 provides flexible installation options while maintaining precise level detection.

Specification

·  Product type: Guided wave radar level meter

·  Model: SUP‑RD701

·  Measuring range: 0–30 meters

·  Accuracy:

  • ±5 mm (shorter ranges) / ±10 mm up to ±25 mm (longer ranges depending on measurement length)

·  Application: Continuous level measurement for liquids and bulk solids

·  Process connection: Thread or flange (optional)

·  Process temperature: –40 °C to 250 °C

·  Process pressure: –0.1 MPa to 4 MPa

·  Frequency range: 500 MHz–1.8 GHz

·  Output signals: 4–20 mA with HART, RS485/Modbus communication

·  Power supply:

  • 24 V DC (two‑wire)
  • 24 V DC/220 V AC (four‑wire)

·  Ingress protection: IP67

·  Probe options: Cable or rod probe
