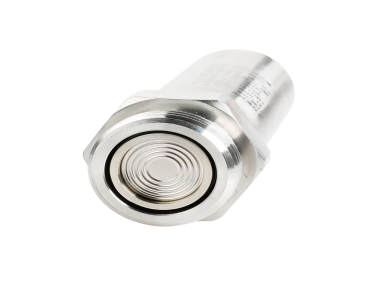

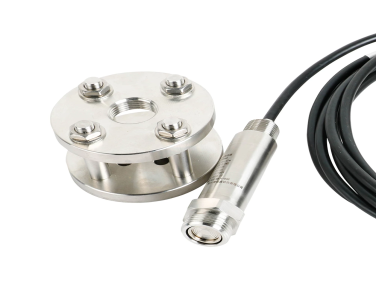

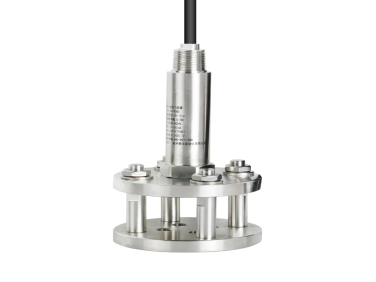

SUP-P260-M2 Slurry level sensor submersible level transmitter

  • NG # 04102-HW-SUPMEA-057

  • MF # SUP-P260-M2

The SUP‑P260‑M2 Slurry Level Meter is a hydrostatic, submersible level transmitter designed for continuous liquid level measurement in challenging environments, including slurry, wastewater, wells, and groundwater. It features a robust stainless steel construction, high accuracy, and a standard 4‑20 mA output suitable for integration with control systems and monitoring devices.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑P260‑M2 Slurry Level Meter is a fully sealed hydrostatic level sensor that measures the depth or level of liquids and slurries by sensing hydrostatic pressure. Built for harsh environments, it combines corrosion‑resistant materials with reliable performance, making it suitable for industrial, municipal, and environmental applications. The sensor is compatible with PLCs, data loggers, and panel meters, and provides a linear 4‑20 mA output for real‑time monitoring.

Specification

Model

  • SUP‑P260‑M2 slurry level transmitter

Measurement

  • Measuring range: 0 m up to 100 m
  • Display resolution: 0.5 % full scale
  • Pressure type: Gauge pressure

Performance

  • Accuracy (resolution): 0.5 % F.S.
  • Stability:  ±0.2 % F.S./year
  • Pressure overload capacity: ≤2× full range

Output & Power

  • Output signal: 4–20 mA
  • Power supply: 12 V DC to 30 V DC

Operating Conditions

  • Medium temperature: –30 °C to 65 °C
  • Compensation temperature:
    • ≤2 m: 0 °C to 50 °C
    • ≥2 m: –10 °C to 60 °C

Construction & Protection

  • Body material: Durable 316 stainless steel construction
  • Threaded connection: 1/2‑inch NPT
  • Ingress protection: IP68 for permanent submersion

Features

  • Non‑clogging design resistant to floating solids
  • Diaphragm protected from physical damage and turbulence
  • Added weight for stable submersion
  • Excellent chemical compatibility for broad applications
