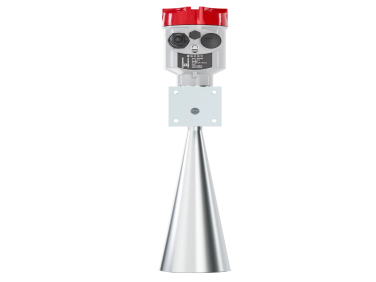

SUP-RD902 26GHz Radar level meter

  • NG # 04091-HW-SUPMEA-046

  • MF # SUP-RD902

The SUP-RD902 Radar Level Meter is a non-contact radar level transmitter designed for continuous liquid level measurement. It operates with simple commissioning and maintenance-free functionality, suitable for use in basic storage tanks as well as more demanding applications involving corrosive or aggressive media and high-accuracy gauging environments.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP-RD902 Radar Level Meter is a 26 GHz non-contact radar sensor that provides reliable liquid level measurement up to 30 meters. It supports multiple signal outputs including 4-20 mA with HART and RS485/Modbus communication, and is built for robust performance in a wide range of process conditions with high temperature and pressure tolerance.

Specification

General

  • Model: SUP-RD902 Radar level meter
  • Measurement principle: Non-contact radar level measurement
  • Frequency band: 26 GHz

Performance

  • Measurement range: up to 30 m
  • Accuracy:  ± 3 mm
  • Medium application: Slightly corrosive liquid

Process Conditions

  • Process connection types: Thread or flange
  • Medium temperature range: -40 °C to 130 °C standard, up to 250 °C high temperature type
  • Process pressure range: -0.1 to 4.0 MPa

Output and Communication

  • Output signal: 4-20 mA with HART (two-wire or four-wire)
  • Digital communications: RS485 with Modbus support

Electrical

  • Power supply: DC 6-24 V for four-wire, DC 24 V for two-wire

Protection and Construction

  • Protection rating: IP67 (dust-tight and water resistant)
