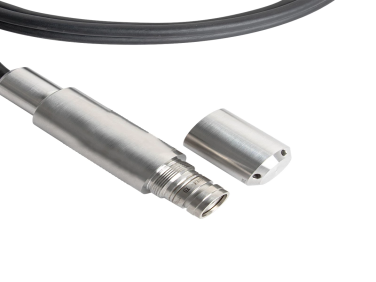

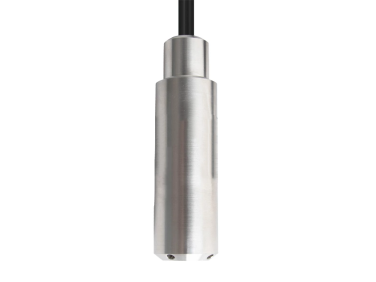

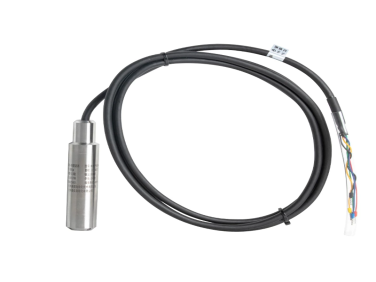

SUP-P260-M4 Submersible level and temperature meter

  • NG # 04104-HW-SUPMEA-059

  • MF # SUP-P260-M4

The SUP‑P260‑M4 is a fully sealed submersible instrument designed for continuous hydrostatic level and temperature measurement in liquids. It provides multiple standard output signals and accommodates a wide range of measurement depths and medium temperatures, making it suitable for real‑time monitoring in water, wells, groundwater, and similar applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑P260‑M4 Submersible Level and Temperature Meter is engineered for reliable, long‑term liquid level and temperature sensing in submerged environments. Its robust IP68‑rated enclosure allows complete submersion for continuous measurement tasks such as water level monitoring, well depth assessment, and groundwater level tracking. With selectable output signal formats (RS485, 4 – 20 mA, 0 – 5 V, 1 – 5 V) and a wide operating temperature range, the device interfaces easily with data loggers and control systems. The unit delivers precise level and temperature data over a broad range and is powered from a low voltage DC source, providing flexibility for industrial and environmental applications.

Specification

·  Product Name: Submersible Level and Temperature Meter

·  Model: SUP‑P260‑M4

·  Measuring Range:

  • Level: 0 … 100 m
  • Temperature: 0 … 50 °C

·  Accuracy:

  • Level: 0.5 %FS
  • Temperature: 1.5 %FS

·  Compensation Temperature Range: 0 … 50 °C

·  Output Signals: RS485 / 4 – 20 mA / 0 – 5 V / 1 – 5 V

·  Medium (Operating) Temperature Range: -20 … 65 °C

·  Power Supply: 12 … 30 VDC

·  Ingress Protection Rating: IP68 (fully sealed for submersion)
