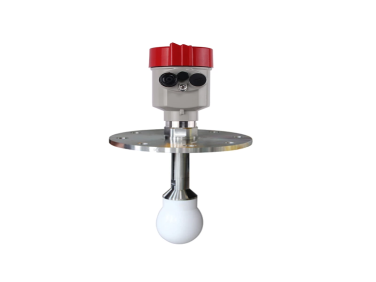

SUP-RD902S Radar level meter for high temp and pressure application

  • NG # 04101-HW-SUPMEA-056

  • MF # SUP-RD902S

The SUP‑RD902S Radar Level Meter is a non‑contact 26 GHz radar sensor designed for accurate level measurement in challenging environments such as high temperature, high pressure, and corrosive media. It features simple commissioning and reliable operation, suitable for a wide range of industrial storage and process applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑RD902S is a high‑performance radar level transmitter that measures liquid or material levels without physical contact with the medium. Its PTFE sensor material enables use in harsh and corrosive conditions. The meter supports long‑range measurement up to 30 m with high precision and multiple output options (4‑20 mA, RS485/Modbus), and is built with robust IP67 protection for demanding industrial environments.

Specification

General

  • Product type: Radar level meter
  • Model: SUP‑RD902S
  • Measurement principle: Non‑contact radar (26 GHz)

Measurement

  • Measuring range: 0 – 30 meters
  • Accuracy:  ± 3 mm

Environmental / Process Conditions

  • Application environment: High temperature, high pressure, corrosive media
  • Medium temperature:
    • Standard type: −40 °C to 130 °C
    • High temperature type: −40 °C to 250 °C
  • Process pressure: −0.1 ~ 4.0 MPa
  • Protection rating: IP67

Physical / Installation

  • Process connection options: Thread, Flange
  • Installation requirements: Requires minimum clearances in the installation area (refer to product manual for details)

Output / Communication

  • Signal output: 4‑20 mA
  • Communication protocols: RS485 / Modbus

Power

  • Power supply options:
    • DC 6 ~ 24 V (four‑wire)
    • DC 24 V (two‑wire)
