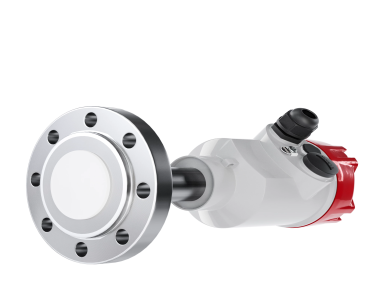

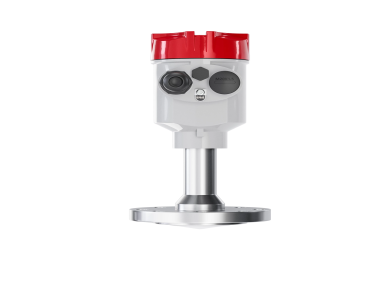

SUP-RD906 26GHz Tank radar level meter

  • NG # 04092-HW-SUPMEA-047

  • MF # SUP-RD906

The SUP-RD906 26GHz Tank Radar Level Meter is a high-frequency radar level measurement device designed for precise, non-contact continuous level monitoring in tanks. It operates at a 26 GHz frequency, providing high accuracy and reliable outputs suitable for industrial liquid level applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP-RD906 Radar Level Meter is engineered for accurate level measurement of liquids in various tank environments. Using radar signal technology, it delivers dependable level readings regardless of changes in temperature, pressure, or media properties. The device supports multiple signal outputs including standard 4-20 mA and digital communication protocols like RS485/Modbus, making it compatible with control systems such as PLCs or SCADA. Its robust IP67 protection rating ensures performance in demanding industrial conditions. Installation options such as flange mounting allow flexibility according to tank configuration. Designed with a wide working range and exposed to normal process pressure, the meter is suitable for continuous monitoring in storage and processing tanks.

Specification

·  Product Type: Radar level meter

·  Model: SUP-RD906

·  Frequency Range: 26 GHz

·  Measuring Range: 0 – 20 m

·  Accuracy: ±3 mm

·  Application: Tank level measurement

·  Process Connection: Flange (optionally thread or other mounting)

·  Medium Temperature Range: –40 °C to 80 °C (some sources indicate up to –40 °C to 150 °C)

·  Process Pressure: Normal pressure

·  Protection Grade: IP67

·  Output Signals:

  • 4-20 mA (two-wire/four-wire)
  • RS485/Modbus digital communication

·  Power Supply:

  • DC 6  – 24 V (four-wire)
  • DC 24 V (two-wire)
