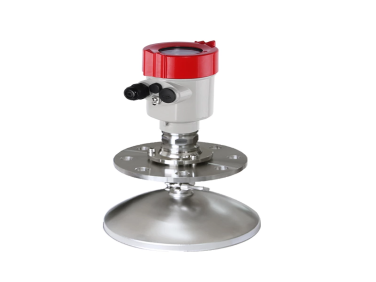

SUP-RD904 Solid material radar level meter

  • NG # 04096-HW-SUPMEA-051

  • MF # SUP-RD904

The RD904 Radar Level Meter is a high-frequency radar level transmitter designed for continuous level measurement of solids and liquids in industrial environments. It provides non-contact measurement over long ranges with robust performance in dusty, condensation-prone, or low-dielectric media applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RD904 Radar Level Meter from Supmea Automation offers reliable and accurate level detection using 26 GHz radar technology. With a measurement range of up to 80 meters and high environmental resistance (IP67), the RD904 is suitable for use in harsh conditions involving heavy dust, solid materials, condensation, and low dielectric constant media. It supports multiple output interfaces including 4–20 mA, RS485, and Modbus for integration with automation systems.

Specification

General

  • Model: SUP-RD904 Radar Level Meter
  • Technology: 26 GHz radar level measurement
  • Measurement type: Non-contact level detection

Measurement Performance

  • Measuring range: 0–80 meters
  • Accuracy:  ±15 mm
  • Frequency range: 26 GHz

Environmental & Process Conditions

  • Application: Solids, strong dust, crystallizing and condensation environments
  • Medium temperature (standard type): –40 to 130 °C
  • Medium temperature (high temperature type): –40 to 230 °C
  • Process pressure: –0.1 to 0.3 MPa
  • Ingress protection: IP67

Connections & Outputs

  • Process connection: Thread or flange
  • Signal output: 4–20 mA (two-wire/four-wire)
  • Additional communications: RS485/Modbus
  • Power supply: DC 6–24 V (four-wire) or DC 24 V (two-wire)

Mechanical & Installation

  • Housing: Suitable for industrial installations
  • Installation guide included on original product documentation
