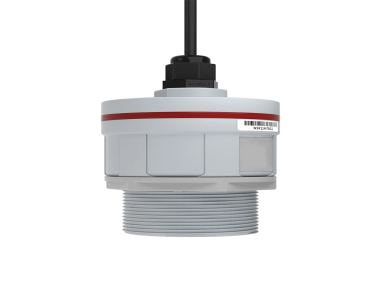

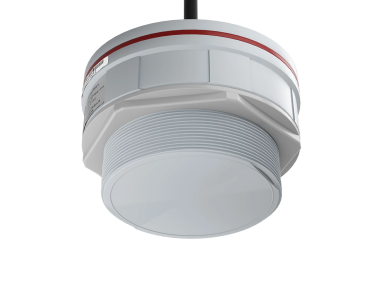

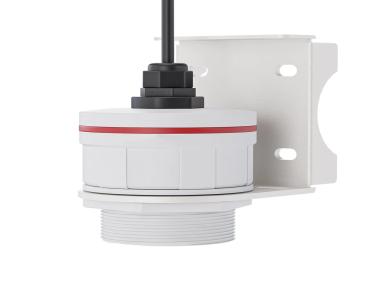

WSR201 60G Radar level meter

  • NG # 04088-HW-SUPMEA-043

  • MF # WSR201

The WSR201-60G Radar Level Meter is a non-contact radar level measurement instrument designed for accurate real-time monitoring of liquid levels. It uses 60 GHz high-frequency microwave radar (PCR) technology to deliver precise level detection up to 15 m with minimal interference from environmental factors. The device supports both wired and wireless communication interfaces, providing versatile output options for industrial applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The WSR201-60G Radar Level Meter is engineered for reliable and precise liquid level measurement in diverse environments including dusty, misty, or harsh conditions where traditional sensors may struggle. Featuring pulsed coherent radar technology at 57–64 GHz, the meter maintains high accuracy and stability without requiring on-site calibration. Its narrow beam angle and concentrated energy improve anti-interference performance while the low transmission power ensures safety. The unit offers flexible communication options including Bluetooth configuration, analog 4–20 mA output, and digital RS485/Modbus-RTU for easy integration with control systems. With robust ingress protection (IP68) and wide operating temperature and pressure ranges, it is suitable for hydrological and industrial level monitoring tasks.

Specification

Model

  • WSR201-60G Radar Level Meter

Measurement Performance

  • Measuring range: 5 m / 10 m / 15 m
  • Blocking distance: ≤ 0.15 m
  • Beam angle: 6°
  • Accuracy:  ±5 mm (5 m/10 m); ±0.1% FS (15 m)
  • Resolution: 1 mm
  • Refresh rate: ≥ 500 ms

Technology and Environment

  • Modulation waveform: PCR (Pulsed Coherent Radar)
  • Transmission frequency: 57 GHz–64 GHz
  • Ingress protection: IP68
  • Operates effectively in dust, rain, snow, light, water mist conditions

Output and Communication

  • Transmission output: 4–20 mA current output
  • Wireless communication: Bluetooth for configuration
  • Communication output: RS485, Modbus-RTU

Power

  • Power supply:
    • 2-wire: 18–36 V DC
    • 4-wire: 9–36 V DC
  • Supply current: ≤ 25 mA (24 V DC)
  • Power consumption: ≤ 1 W (2-wire); ≤ 1.9 W (4-wire)

Process Conditions

  • Dielectric constant requirement: ≥ 3
  • Process pressure: -0.1 to 0.3 MPa
  • Process temperature: -40 to 85 °C
