SUP-RD908 Radar level meter for river

  • NG # 04094-HW-SUPMEA-049

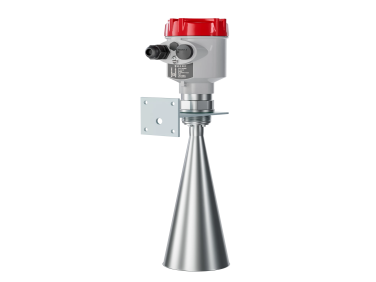

The SUP‑RD908 Radar Level Meter is a non‑contact radar sensor designed for continuous level measurement in open‑channel water environments such as rivers, lakes, and shoals. It operates at 26 GHz and delivers precise measurement with minimal maintenance due to its non‑contact design. It is suitable for a range of industrial applications and operates reliably under extreme environmental conditions.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑RD908 Radar Level Meter from Supmea Automation is engineered for accurate, continuous monitoring of liquid levels without physical contact with the measured medium. Featuring a high‑frequency radar sensor with top‑down installation, this meter provides reliable performance in diverse environments including outdoor waterways and harsh process conditions. Its robust construction and advanced signal output options make it suitable for industries such as water management, wastewater treatment, and process control systems.

Specification

Basic Information
• Product type: Radar level meter
• Model: SUP‑RD908
• Measurement type: Non‑contact radar

Performance Parameters
• Measurement range: 0 to 30 m
• Accuracy: ±3 mm (general) Note: accuracy may vary with measurement range
• Operating frequency: 26 GHz

Environmental and Process Conditions
• Application: Rivers, lakes, shoals, open‑channel level monitoring
• Medium temperature: ‑40 °C to 100 °C
• Process pressure: Normal pressure
• Ingress protection: IP67 / IP65

Connections and Outputs
• Process connection: Thread G1½ A" / frame / flange
• Signal output: 4‑20 mA, RS485/Modbus communication support

Power Supply
• Power options: DC 6‑24 V (four‑wire) or DC 24 V (two‑wire)

Additional Notes
• Non‑contact design reduces wear and maintenance.
• Suitable for various industrial applications including water and wastewater industries.
