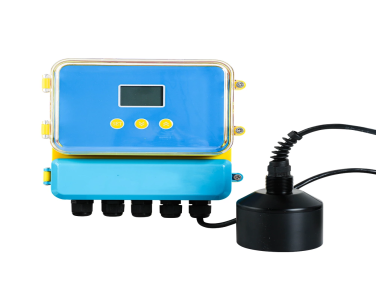

SUP-JFC Ultrasonic mud level transmitter

  • NG # 04105-HW-SUPMEA-060

  • MF # SUP-JFC

The SUP‑JFC Ultrasonic Mud Level Transmitter is a non‑contact sludge interface measuring instrument designed to accurately detect mud level in fixed containers by transmitting ultrasonic waves through liquid media. It is easy to install and maintain, suitable for wastewater treatment and sludge monitoring applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

This ultrasonic mud level meter operates by emitting ultrasonic waves that travel through the liquid and reflect off the mud surface, allowing precise determination of sludge thickness. It supports a wide range of measurement distances and offers flexible power and communication options. The transmitter features robust environmental protection, configurable probe cable lengths, and reliable analog output for integration into industrial monitoring systems.

Specification

·  Product Model: SUP‑JFC Ultrasonic Mud Level Transmitter

·  Measurement Principle: Non‑contact ultrasonic wave reflection

·  Measurement Range: Standard options 5 m, 10 m, 15 m, 20 m; custom options up to 70 m

·  Accuracy: 1 % to 3 % of reading

·  Resolution: 5 mm or 0.5 % (whichever is greater)

·  Structure: Remote‑type transmitter

·  Display: English LCD interface

·  Output Signal: 4‑20 mA with up to 750 Ù load

·  Power Supply: Standard 200 VAC ±15 % 50 Hz; optional 24 VDC 120 mA; custom 12 VDC or battery available

·  Environmental Temperature Range: Display instrument ‑20 °C to +60 °C; probe ‑20 °C to +80 °C

·  Communication Options: RS485 or RS232 (optional)

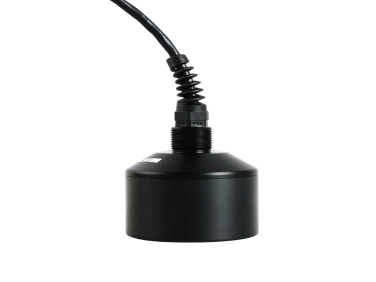

·  Probe Cable: Up to 100 m total length; standard configuration 10 m

·  Protection Grade: Display instrument IP65; probe IP68
