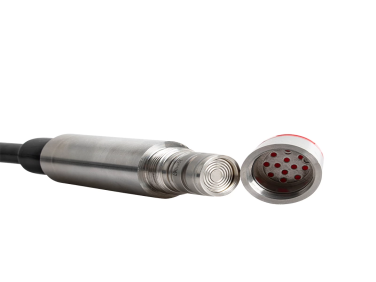

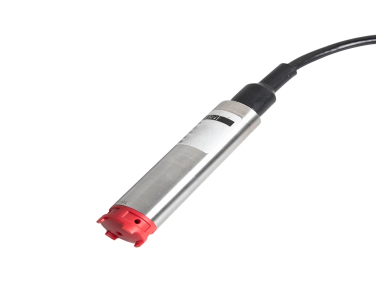

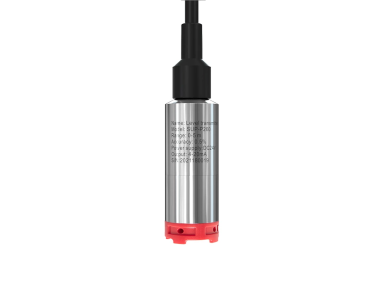

SUP-P260 Submersible level meter

  • NG # 04098-HW-SUPMEA-053

  • MF # SUP-P260

The SUP‑P260 Submersible Level Meter is a hydrostatic liquid level transmitter designed for continuous and accurate measurement of fluid depth in submerged environments. It operates by converting hydrostatic pressure into standard electrical output signals suitable for industrial control systems and monitoring equipment. The unit is fully sealed for immersion and suitable for water level, groundwater, well, tank, reservoir, and similar applications.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑P260 Submersible Level Meter is a robust hydrostatic level transmitter engineered for reliable liquid level monitoring in submerged conditions. Its sealed design allows safe and accurate immersion in water or similar fluids. The transmitter supports a wide range of output signal types and operates with low power requirements. It is ideal for integration with PLCs, panel meters, data loggers, and other control systems in industrial, municipal, and environmental monitoring settings.

Specification

General

  • Product type: Submersible hydrostatic level transmitter / liquid level meter
  • Model: SUP‑P260
  • Measurement principle: Hydrostatic pressure sensing

Measurement

  • Measuring range: 0 ~ 0.5 m up to 200 m
  • Accuracy: 0.5 % full scale (FS)
  • Pressure type: Gauge pressure
  • Pressure overload rating: 150 % FS
  • Stability:  ±0.2 % FS per year

Output & Signals

  • Output signal options:
    • 4 – 20 mA
    • 1 – 5 V
    • 0 – 10 V
    • 0 – 5 V
    • RS485 digital interface

Environmental & Operational

  • Temperature compensation range: ‑10 °C ~ 70 °C
  • Medium temperature range: ‑10 °C ~ 65 °C
  • Storage temperature: ‑20 °C ~ 65 °C
  • Power supply:
    • For 4‑20 mA output: 10 – 32 VDC
    • For 0‑10 V output: 12 – 32 VDC
    • For RS485: 8 – 32 VDC

Protection & Construction

  • Ingress protection:
    • IP68 (sensor body)
    • IP65 (cable junction part)
  • Suitable for full submersion in liquid environments

Applications

  • Water level measurement in wells, tanks, reservoirs
  • Groundwater and well depth monitoring
  • Industrial and municipal fluid level control systems
  • Integration with PLCs and data acquisition systems
