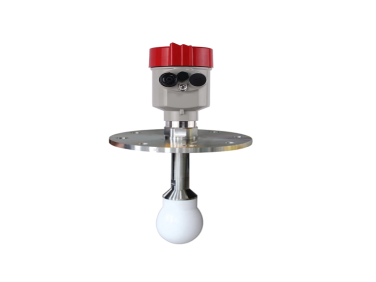

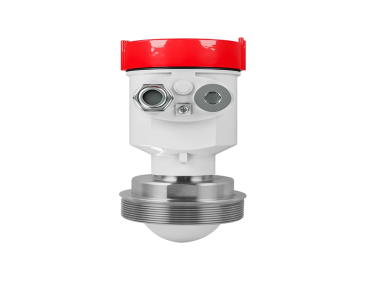

WSR550 76-81GHz Radar level transmitter

  • NG # 04087-HW-SUPMEA-042

  • MF # WSR550

The WSR550 is a high-frequency radar level transmitter operating in the 76–81 GHz band designed for accurate non-contact measurement of liquid and solid levels in industrial environments. It supports both two-wire and four-wire configurations and provides reliable performance in dusty, foamy, or harsh process conditions. The device offers multiple measurement ranges, robust communication options, and flexible installation methods.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The WSR550 radar level meter utilizes FMCW (Frequency Modulated Continuous Wave) radar technology in the 76–81 GHz millimeter-wave band to deliver high-precision, non-contact level measurement for liquids, solids, and interfaces. The high operational frequency improves penetration through vapor, dust, and foam, ensuring accurate readings in environments where traditional technologies may struggle. With selectable measurement ranges, a rugged IP67 enclosure, and support for standard industrial communications like 4-20 mA, RS485, Modbus, and HART, the WSR550 is suited for diverse industrial applications. Installation can be via threaded or flanged process connections, and the transmitter can be configured for two-wire or four-wire power systems.

Specification

Model and Technology

  • Model: WSR550 Radar Level Meter / Transmitter
  • Radar type: Frequency Modulated Continuous Wave (FMCW)
  • Operating frequency: 76 GHz to 81 GHz

Measurement

  • Measurement range options: 0.08 m to 30 m, 0.3 m to 60 m (other ranges available)
  • Accuracy:  ±1 mm
  • Beam angle: 3° / 8°
  • Minimum measurable dielectric constant: ≥ 2

Environmental and Mechanical

  • Process temperature range: –40 °C to 80 °C standard, –40 °C to 150 °C high temperature option
  • Process pressure: –0.1 MPa to 2 MPa
  • Ingress protection: IP67
  • Humidity:  ≤ 95 % RH
  • Enclosure: Aluminum alloy or stainless steel

Outputs and Communication

  • Signal output: 4-20 mA and RS485
  • Communication protocols: Modbus, HART
  • Fault output configurations supported

Power and Installation

  • Power supply: 15 V to 28 V DC (some models support 220 VAC)
  • Installation types: Thread and flange process connections
  • Cable entry: M20×1.5

Physical Characteristics

  • Size:  Ø100 mm × 270 mm
  • Weight: 2.48 kg to 2.995 kg depending on configuration
  • Recommended cables: AWG18 or 0.75 mm²
  • Antenna options: Lens antenna, anti-corrosive antenna, or quartz isolated flange type
