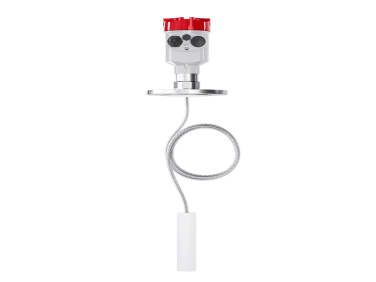

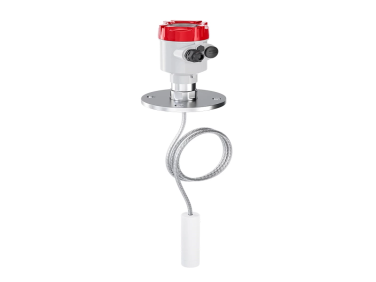

SUP-RD702 Guided wave radar level meter

  • NG # 04099-HW-SUPMEA-054

  • MF # SUP-RD702

The SUP‑RD702 Guided Wave Radar Level Meter is an industrial radar level measurement instrument designed for continuous level detection in liquids and bulk solids, particularly suitable for corrosive media. The device uses guided wave radar technology, where high‑frequency microwave pulses travel along a probe and reflect from the surface of the material being measured. With robust construction and versatile installation options, it provides reliable level measurement for tanks, vessels, and process systems across chemical, industrial, and corrosive environments.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP‑RD702 Guided Wave Radar Level Meter is a radar‑based level transmitter for liquids and bulk solids. It delivers accurate continuous level measurement using guided wave radar technology and supports various industrial medium conditions, including corrosive substances. The unit features flexible output options, durable environmental protection, and multiple power supply configurations for integration into automated control systems.

Specification

Model and Functionality

  • Model: SUP‑RD702 guided wave radar level meter
  • Measurement technique: Guided wave radar with microwave signal propagation along probe
  • Measuring range: up to 20 meters

Performance

  • Measurement accuracy: ±10 mm typical
  • Frequency range: 500 MHz to 1.8 GHz

Application and Media

  • Suitable for acids, alkalis, and other corrosive media
  • Applicable to liquids and bulk solid materials

Process Conditions

  • Process temperature range: –40°C to 200°C
  • Process pressure: –0.1 MPa to 4 MPa
  • Process connection: Thread or flange options

Outputs and Communication

  • Signal output: 4‑20 mA with HART protocol
  • Communication: RS485 / Modbus available

Electrical and Protection

  • Power supply options:
    • Two‑wire (24 V DC)
    • Four‑wire (24 V DC / 220 V AC)
  • Ingress protection rating: IP67

Mechanical Features

  • PTFE antenna suitable for corrosive environments
  • Suitable for installation in industrial tanks and vessels
