SUP-RD909 70 meters Radar level meter

  • NG # 04093-HW-SUPMEA-048

  • MF # SUP-RD909

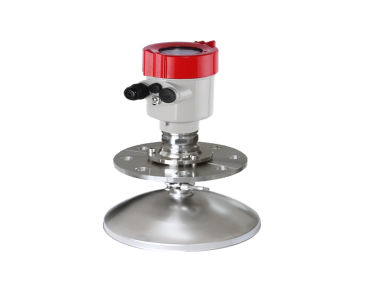

The SUP-RD909 Radar Level Meter is a non-contact radar level measurement instrument designed for long-range level monitoring up to 70 meters. It operates at an industry-standard 26 GHz frequency to deliver concentrated beam energy, strong anti-interference performance, and reliable high-precision measurements in applications including rivers, lakes, and shoals.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The SUP-RD909 Radar Level Meter is engineered for continuous, reliable non-contact level measurement in large open water environments. Utilizing a 26 GHz radar emission frequency, it produces a narrow beam with concentrated energy that enhances measurement accuracy and reduces interference from environmental noise. With a maximum range of 70 meters and an accuracy of ±10 mm, this radar level meter is suitable for monitoring water levels in rivers, lakes, and shoals where high precision and long-distance sensing are required. The instrument supports flexible signal output options including 4-20 mA and RS485/Modbus communication, and features robust protection ratings (IP67/IP65) for outdoor and industrial usage. Its process connection options and operating temperature range further make it adaptable to a variety of site conditions.

Specification

  • Model: SUP-RD909 Radar Level Meter
  • Measuring Range: Up to 0–70 meters
  • Emission Frequency: 26 GHz
  • Accuracy:  ±10 mm
  • Application: Suitable for rivers, lakes, shoals, and other large body water level measurements
  • Process Connection: Thread G1½ A″ / frame / flange
  • Medium Temperature Range: –40 °C to 100 °C
  • Process Pressure: Normal pressure
  • Protection Grade: IP67 / IP65
  • Signal Output: 4-20 mA (two-wire/four-wire), RS485 / Modbus
  • Power Supply: DC 6-24 V (four-wire) or DC 24 V (two-wire)
