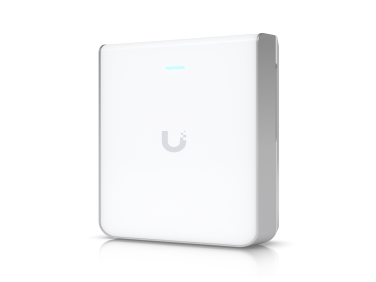

Ubiquiti U7 Pro Wall

NG # 04370-HW-UBI-009

Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.

Manufactured By :

Ubiquiti Network

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Ubiquiti UniFi U7 Pro Wall is a sleek, tri-band Wi-Fi 7 (802.11be) access point specifically optimized for wall mounting. Unlike traditional "In-Wall" models that double as an Ethernet switch, the U7 Pro Wall is a pure high-performance access point designed for a slim, discreet aesthetic in residential and commercial spaces

Specification

Wireless Specifications

Standards: 802.11a/b/g/n/ac/ax/be (Wi-Fi 7).
MIMO: 2x2 on all three bands (6 total spatial streams).
Maximum Throughput:
- 6 GHz: 5.8 Gbps (320 MHz bandwidth).
- 5 GHz: 4.3 Gbps (240 MHz bandwidth).
- 2.4 GHz: 688 Mbps (40 MHz bandwidth).
Antenna Gain:
- 6 GHz: 6 dBi.
- 5 GHz: 5 dBi.
- 2.4 GHz: 4 dBi.
Max TX Power: 2.4 GHz (22 dBm), 5 GHz (26 dBm), 6 GHz (23 dBm).

Hardware & Power

Ethernet Interface: (1) 1/2.5 GbE RJ45 uplink port.
Power Method: PoE+ (802.3at).
Max Power Consumption: 22W.
Management Interface: Ethernet.
Thermal: Includes side ventilation grills and an internal fan for cooling.

Mechanical & Environmental

Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4").
Weight: 580 g (1.3 lb).
Materials: Polycarbonate and aluminum enclosure; aluminum mount.
Operating Temperature: -30 to 60° C (-22 to 140° F).
Mounting: Included wall mount. Optional Paintable Flush Mount and Table Stand accessories are available separately
