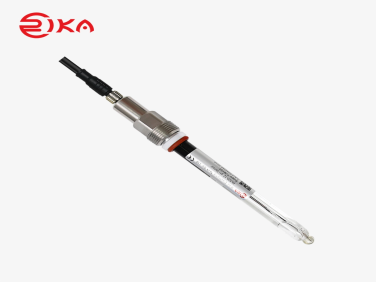

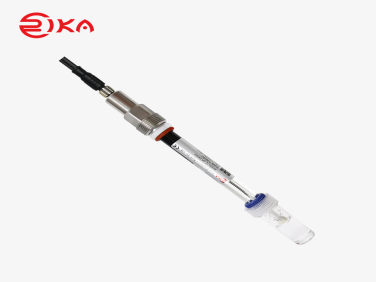

RK500-12 Type-B3 Submersible pH Probe（High temperature environment）

  • NG # 04325-HW-RIK-014

The RK500-12 Type B3 Submersible pH Probe is a high-precision industrial sensor designed for reliable pH measurement in high-temperature and harsh environments. Built with durable Glass + 316L stainless steel construction, it delivers accurate and stable readings in submerged applications such as wastewater, chemical processes, and industrial water treatment systems.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK500-12 Type B3 is part of a versatile industrial pH sensor series designed for continuous monitoring of water quality across demanding applications. It is specifically engineered for high-temperature environments, making it suitable for chemical plants, wastewater treatment facilities, and industrial process control systems where standard sensors may fail.

This probe offers excellent chemical resistance and long-term stability due to its Glass + 316L body structure. With IP68 protection, it can operate fully submerged in water without performance degradation. It supports a wide pH measurement range and ensures fast response and high accuracy, making it ideal for real-time monitoring applications.

The sensor integrates easily into industrial systems through a PG13.5 threaded connection and M8 waterproof interface, ensuring secure installation and reliable signal transmission in harsh conditions.

Specification

  • Model: RK500-12 Type B3
  • Measured Parameter: pH value
  • pH Range: 0–14 pH
  • Resolution: 0.01 pH
  • Accuracy: ±0.01 pH
  • Sensor Material: Glass + 316L stainless steel
  • Operating Temperature: 0°C to 100°C
  • Working Pressure: Up to 1 MPa
  • Temperature Compensation: Built-in thermal resistance compensation
  • Response Time: ≤10 seconds (98% response in flowing liquid)
  • Electrical Output: RS485 / 4–20 mA
  • Power Supply: 7–30 V DC
  • Connection Type: PG13.5 thread with M8 waterproof connector
  • Protection Rating: IP68 (fully submersible)
  • Application Areas: High-temperature wastewater, industrial water systems, chemical processing, environmental monitoring, and treatment plants
