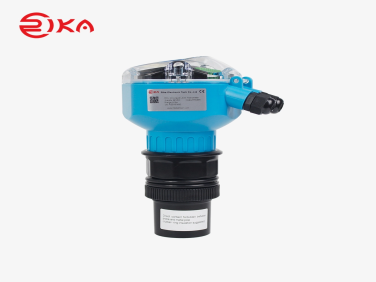

RKL-03 Ultrasonic Liquid Level Transmitter

  • NG # 04338-HW-RIK-027

The RKL-03 Ultrasonic Liquid Level Transmitter is a non-contact liquid level measurement device designed for accurate, reliable, and maintenance-free monitoring of liquids in industrial and environmental applications. It uses ultrasonic Time-of-Flight (TOF) technology to measure distance without direct contact with the medium, ensuring durability and high performance across a wide range of conditions.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RKL-03 Ultrasonic Liquid Level Transmitter is engineered to deliver precise and stable liquid level measurement using advanced ultrasonic sensing technology. By emitting ultrasonic pulses and calculating the time taken for the echo to return from the liquid surface, the device determines the level accurately without physical contact.

This non-contact design makes it particularly suitable for applications involving corrosive, hazardous, or contaminated liquids, as it eliminates sensor wear and reduces maintenance requirements. The transmitter is built with high reliability and strong resistance to environmental interference, ensuring consistent performance even in challenging conditions.

With flexible output options such as 4–20mA and RS485, the device can be easily integrated into existing monitoring and control systems, including data loggers and industrial automation platforms. It also features a user-friendly LCD display and configurable parameters for customized operation.

The RKL-03 is widely used in applications such as water treatment, reservoirs, agricultural irrigation, chemical processing, and urban sewage systems, offering a cost-effective and efficient solution for continuous level monitoring.

Specification

  • Model: RKL-03
  • Measurement Range: 5m, 10m, 15m, 20m, 30m
  • Output Signal:
    • 4–20mA (2-wire / 4-wire)
    • RS485 (4-wire)
  • Supply Voltage: 24VDC, 220VAC, 12VDC (RS485 only)
  • Accuracy: ±0.5% to ±1%
  • Resolution: ±3mm or 0.1% FS (whichever is greater)

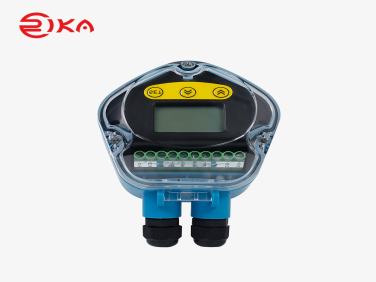

  • Display: LCD (English interface)
  • Control Output: Relay (AC250V/8A or 30V/5A)
  • Power Consumption:
    • 2-wire (no relay): 0.48W
    • 4-wire (no relay): 1.9W
    • 4-wire (with relay): 3.6W
  • Ingress Protection:
    • Probe: IP68
    • Display Unit: IP66
  • Operating Temperature:
    • Probe: -20°C to +80°C
    • Display Unit: -20°C to +60°C
  • Housing Material: Corrosion-resistant engineering plastics / cast aluminum (optional explosion-proof)
  • Process Connection:
    • 0–10m: G2
    • 0–20m: M78×2

20m: M108×2

  • Configuration Options: Zero point, range limits, alarm settings, response time, communication settings, and calibration
  • Storage Condition: 10°C–50°C, 20%–90% RH
  • Applications: Water treatment, reservoirs, rivers, wells, agriculture irrigation, chemical industry, urban sewage
