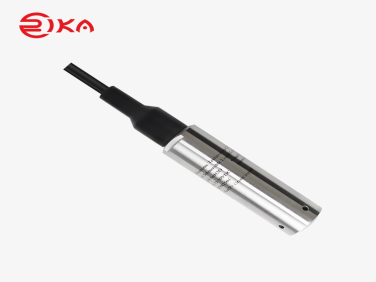

RKL-01 Submersible Liquid Level Transmitter Submersible Water Level Sensor

  • NG # 04312-HW-RIK-001

The RKL-01 Submersible Liquid Level Transmitter is a high-precision water level sensor designed for continuous liquid level measurement in harsh environments. It uses a diffusion silicon pressure sensing element with a stainless steel diaphragm to deliver accurate, stable, and reliable performance. With IP68 protection, wide output options, and strong resistance to interference, it is ideal for applications such as groundwater monitoring, irrigation systems, and industrial liquid level control.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

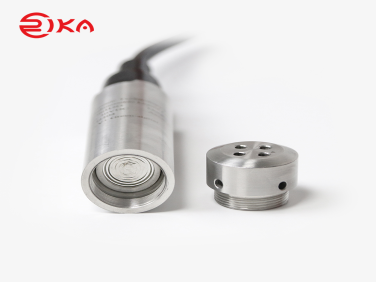

The RKL-01 Submersible Liquid Level Transmitter is engineered for accurate and long-term liquid level monitoring in demanding environments. It utilizes a high-quality diffusion silicon pressure sensor combined with a stainless steel isolation diaphragm to ensure precise measurement and durability. The internal sensing core is laser-trimmed, allowing effective temperature compensation and stable performance across a wide temperature range.

A specially designed vented cable enables atmospheric pressure compensation while maintaining waterproof integrity, ensuring consistent and accurate readings over time. The sensor is built with corrosion-resistant materials and offers excellent protection against moisture and environmental interference, making it suitable for submerged applications.

This transmitter supports multiple output signals including analog and digital formats, allowing easy integration with various monitoring and control systems. Its fast response time, high accuracy, and strong anti-interference capability make it a reliable solution for real-time liquid level measurement.

The RKL-01 is widely used in applications such as groundwater monitoring, reservoirs, wastewater treatment, rivers, irrigation systems, and industrial tanks. Its robust construction and IP68 rating ensure long service life even in challenging conditions, making it a dependable choice for environmental and industrial measurement tasks.

Specification

  • Model: RKL-01
  • Measuring Range:
    • 0 ~ 0.5 m to 500 mH₂O
    • 0 ~ 5 kPa to 5 MPa
  • Output Signal: 4–20 mA, 0–5 V, 0–10 V, RS485
  • Supply Voltage: 10–30 VDC (24 V typical)
  • Accuracy: 0.1% FS / 0.25% FS / 0.5% FS
  • Response Time: 1 ms
  • Overload Pressure: 1.5 × FS
  • Long-term Stability: ≤ 0.2% FS/year
  • Operating Temperature: -20°C to +85°C
  • Compensation Temperature: -10°C to 70°C (up to -40°C optional)
  • Ingress Protection: IP68
  • Material:
    • Sensor: 316L Stainless Steel
    • Housing: 304 Stainless Steel (316L optional)
  • Cable Type: Ventilated PUR waterproof cable
  • Power Consumption:
    • Current: (U × 0.02) W
    • Voltage: (U × 0.008) W
  • Load Capacity:
    • Current output: ≤ (U-10)/0.02 Ω
    • Voltage output: ≥ 20 kΩ
  • Insulation Resistance: 100 MΩ @ 250 VDC
  • Probe Diameter Options: Φ27 mm (standard), Φ19 mm, Φ16 mm, Φ13 mm
  • Weight: Approx. 0.2–0.3 kg (depending on size)
  • Storage Temperature: -40°C to 75°C
  • Protection Standard: Surge protection compliant with IEC 61000-4-5 (optional)
