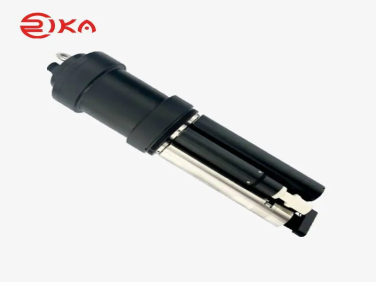

RK500-09 Multi-parameter water quality sensor

  • NG # 04315-HW-RIK-004

The RK500-09 Multi-Parameter Water Quality Sensor is an advanced, all-in-one monitoring device designed to measure multiple water quality parameters simultaneously. With integrated sensors, RS485 (Modbus-RTU) communication, and an automatic cleaning system, it ensures accurate, real-time data collection with minimal maintenance, making it ideal for environmental monitoring, aquaculture, and industrial water applications.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK500-09 Multi-Parameter Water Quality Sensor features a compact, integrated design that allows simultaneous measurement of several critical water parameters such as dissolved oxygen, pH, ORP, conductivity, salinity, turbidity, and temperature. This multi-in-one capability eliminates the need for multiple separate probes, simplifying installation and reducing system complexity.

Equipped with RS-485 output and Modbus-RTU protocol, the sensor enables seamless data transmission to monitoring systems or data acquisition platforms. Its built-in automatic cleaning device helps prevent biofouling and sediment buildup, ensuring long-term accuracy while significantly lowering maintenance requirements.

The device is engineered for durability in harsh environments, featuring a protective housing that safeguards internal components from physical damage and large suspended particles. Quick-plug waterproof connectors further enhance ease of installation and servicing. With low power consumption and high sensitivity, the RK500-09 is well-suited for continuous, reliable water quality monitoring across various industrial and environmental applications.

Specification

Dissolved Oxygen (DO) Sensor

  • Measuring Range: 0–20 mg/L
  • Accuracy: ±0.4 mg/L or ±2%
  • Resolution: 0.01 mg/L

Turbidity Sensor

  • Measuring Range: 0–100 NTU / 0–1000 NTU
  • Accuracy: ±3% or ±2 NTU / ±5% or ±3 NTU
  • Resolution: 0.1 NTU

Electrical Conductivity (EC) Sensor

  • Measuring Range: 0–5000 µS/cm / 0–200 mS/cm
  • Accuracy: ±1.5% F.S.
  • Resolution: 1 µS/cm / 0.1 mS/cm

Salinity Sensor

  • Measuring Range: 0–70 PSU
  • Accuracy: ±1.5% F.S.
  • Resolution: 0.1 PSU

TDS Sensor

  • Measuring Range: 0–100 mg/L / 0–1000 mg/L
  • Accuracy: ±10% or ±1 mg/L
  • Resolution: 0.01 mg/L / 0.1 mg/L

pH Sensor

  • Measuring Range: 0–14 pH
  • Accuracy: ±0.1 pH
  • Resolution: 0.01 pH

ORP Sensor

  • Measuring Range: -1500 mV to +1500 mV
  • Accuracy: ±6 mV
  • Resolution: 1 mV

Temperature Sensor

  • Measuring Range: 0–50°C
  • Accuracy: ±0.3°C
  • Resolution: 0.1°C

Optional Sensors

  • Chlorophyll: 0–400 µg/L, Accuracy ±3%
  • Cyanobacteria: 0–300K cells/L, Accuracy ±3%

General Specifications

  • Output: RS485 (Modbus-RTU)
  • Power Supply: 12V DC ±5%
  • Power Consumption: 5W @ 12V
  • Cleaning Method: Automatic cleaning system
  • Installation: Submersible
  • Housing Material: POM / 316L stainless steel
  • Cable Length: 5 m (customizable)
