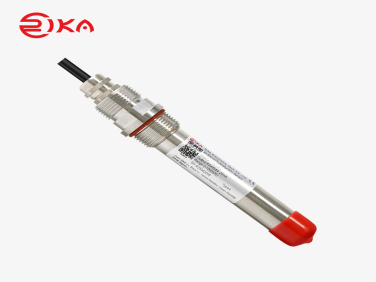

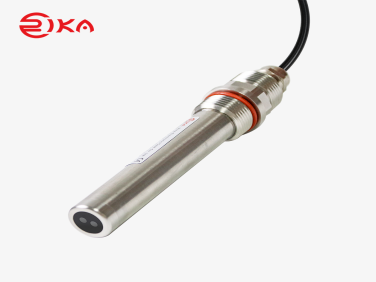

RK500-07 Type-A Turbidity Sensor

  • NG # 04319-HW-RIK-008

The RK500-07-SS Turbidity Sensor is a high-precision water quality monitoring device designed to measure turbidity using advanced optical technology. Built with a durable stainless steel body, it delivers accurate and reliable readings in various freshwater applications such as wastewater treatment, environmental monitoring, and aquaculture.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK500-07-SS Turbidity Sensor is engineered to provide accurate and stable turbidity measurement by utilizing the optical scattering principle. It detects suspended particles in water by measuring light scattered at a 90° angle, ensuring precise readings in NTU (Nephelometric Turbidity Units). The sensor uses an 860 nm infrared light source compliant with ISO7027 standards, effectively minimizing interference caused by water color and improving measurement reliability.

Designed for durability and long-term performance, the sensor features a robust 316L stainless steel construction, making it suitable for harsh industrial and environmental conditions. With low power consumption, fast response time, and high sensitivity, it ensures efficient real-time monitoring. Its dual output options (4–20mA and RS485) allow seamless integration with PLCs, data loggers, and control systems.

This turbidity sensor is widely used in applications such as river monitoring, water treatment plants, reservoirs, agriculture irrigation, and urban sewage systems. Its simple installation, minimal maintenance requirements, and reliable performance make it an ideal solution for continuous water quality monitoring.

Specification

  • Model: RK500-07-A
  • Measuring Principle: Optical (90° scattered light)
  • Measurement Range: 0–10 NTU / 0–100 NTU / 0–1000 NTU / 0–4000 NTU
  • Accuracy: ±1% FS
  • Resolution:
    • 0.01 NTU (≤10 NTU)
    • 0.1 NTU (>10 NTU)
  • Light Source: 860 nm Infrared (ISO7027 compliant)
  • Output Signal: 4–20 mA & RS485 (simultaneous)
  • Supply Voltage: 7–30 VDC
  • Power Consumption: <0.2 W
  • Response Time: 1 second
  • Operating Temperature: 0 to +60°C
  • Pressure Resistance: 0.8 MPa
  • Material: 316L Stainless Steel
  • Thread Connection: NPT 3/4 (upper & lower)
  • Ingress Protection: IP68
  • Storage Conditions: 10–60°C, 20%–90% RH
  • Cable Length: 5 m (default)
  • Application: Freshwater environments, water treatment, aquaculture, environmental monitoring
