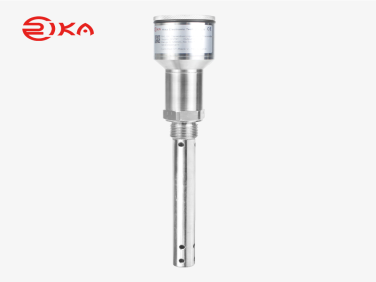

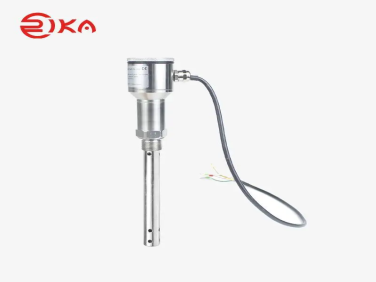

RKL-04T Capacitive Liquid Level Transmitter

  • NG # 04339-HW-RIK-028

The RKL-04T Capacitive Liquid Level Transmitter is a high-precision sensor designed for continuous liquid level measurement in tanks and industrial systems. Using advanced capacitive sensing technology, it delivers stable and accurate output signals for a wide range of liquid media, including oil, water, chemicals, and viscous fluids. Its robust stainless steel and Teflon construction ensures durability, corrosion resistance, and reliable long-term performance.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RKL-04T Capacitive Liquid Level Transmitter operates on a coaxial capacitive sensing principle, where changes in liquid level alter the capacitance between electrodes. This variation is processed through signal conversion and temperature compensation circuits to provide precise and stable output signals such as current, voltage, or digital communication.

Built with food-grade Teflon and 304 stainless steel, the transmitter offers high mechanical strength, excellent hygiene standards, and strong resistance to corrosion. It is suitable for demanding environments, including chemical processing, fuel storage, water treatment, and medical applications. The device supports a wide measurement range from very low levels (as small as 0.03 m) up to 2 meters, making it especially effective for shallow tank measurements below 500 mm.

With features such as fast response, strong anti-interference capability, and wide temperature compensation, the RKL-04T ensures consistent performance even in harsh industrial conditions. Its flexible installation options and multiple output signals make it adaptable to various monitoring and automation systems.

Specification

  • Model: RKL-04T
  • Measuring Range: 0–30 mm to 2000 mm (multiple selectable ranges)
  • Output Signals: 4–20 mA, 0–5 V, RS485
  • Supply Voltage: DC 12–24 V
  • Accuracy: 0.1% FS
  • Long-term Stability: 0.1% FS
  • Zero Temperature Drift: 0.02% FS/°C
  • Full Temperature Drift: 0.03% FS/°C
  • Ingress Protection: IP67
  • Operating Temperature: -40°C to +80°C (customizable)
  • Medium Temperature Range: -40°C to +100°C
  • Pressure Range: -0.1 MPa to 0.5 MPa
  • Blind Zone: 5 mm (optional), 10 mm (typical)
  • Probe Diameter: 16 mm
  • Installation: Thread (M20×1.5, G1/2) or flange (DN25, DN40, DN50)
  • Electrical Interface: Direct cable output
  • Measured Media: Oil (diesel, gasoline, hydraulic oil), water, sewage, beverages, chemicals, medical liquids
