RK900-10 Ultrasonic Automatic Weather Sensor

  • NG # 04340-HW-RIK-029

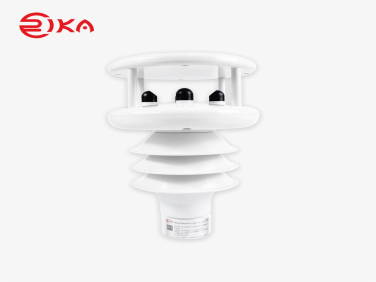

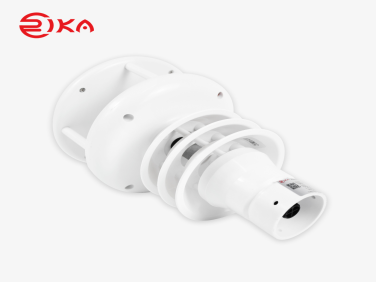

The RK900-10 Automatic Weather Instrument is a compact, multi-parameter ultrasonic weather sensor designed for real-time environmental monitoring. It integrates multiple sensing elements into a single unit to measure wind speed, wind direction, temperature, humidity, pressure, rainfall, solar radiation, illuminance, and dust concentration. With no moving parts and radar-based rainfall detection, it delivers high accuracy, fast response, and low maintenance, making it ideal for industrial, agricultural, and mobile meteorological applications.

Manufactured By :
Regal Systems
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

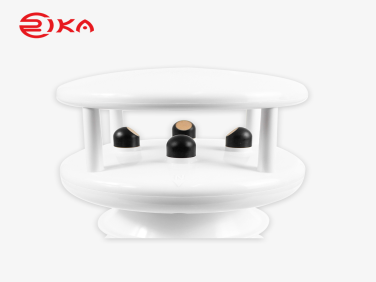

The RK900-10 Automatic Weather Instrument is an advanced all-in-one weather monitoring solution engineered to provide comprehensive atmospheric data in a single integrated device. It utilizes ultrasonic technology for wind measurement, eliminating mechanical wear and ensuring long-term reliability. The system incorporates MEMS-based sensors for temperature, humidity, and pressure, while a 24GHz radar module enables precise rainfall detection and intensity measurement.

This weather instrument is designed for both stationary and mobile applications. With optional GPS and electronic compass modules, it can determine location, movement, and calculate real-time wind vectors, making it especially suitable for use on vehicles, ships, and other moving platforms. Its rugged construction, IP66 protection rating, and built-in heating function allow it to operate reliably in harsh environmental conditions.

The RK900-10 supports multiple communication protocols such as RS485, RS232, and SDI-12, enabling seamless integration with monitoring systems and data loggers. Its modular design allows users to customize measurement parameters according to specific project requirements, making it a flexible solution for meteorological monitoring, renewable energy systems, smart agriculture, and environmental research.

Specification

Measurement Parameters & Performance:

  • Wind Speed: 0–60 m/s, resolution 0.01 m/s, accuracy ±2%
  • Wind Direction: 0–360°, resolution 1°, accuracy <3°
  • Temperature: -40°C to +80°C, resolution 0.1°C, accuracy ±0.5°C
  • Humidity: 0–100% RH, resolution 0.1% RH, accuracy ±3% RH
  • Atmospheric Pressure: 300–1100 hPa, resolution 0.1 hPa, accuracy ±1 hPa
  • Precipitation: 0–200 mm/hr (radar), resolution 0.1 mm, accuracy ±5%
  • Solar Radiation: 0–2000 W/m², accuracy ±5%
  • Illuminance: 0–200,000 lux, accuracy ±5%
  • Dust (PM2.5/PM10): 0–2000 µg/m³, accuracy ±5%
  • Noise: 30–130 dB, accuracy ±3 dB
  • Visibility: 20–10,000 m, accuracy ±15%

System & Electrical:

  • Power Supply: 12–24 VDC
  • Power Consumption: <3W (6W with heating)
  • Output: RS485, RS232, SDI-12
  • Communication Protocols: Modbus-RTU, NMEA-0183, SDI-12
  • Data Update Cycle: 1 second (default)

Mechanical & Environmental:

  • Operating Temperature: -40°C to +80°C
  • Protection Rating: IP66
  • Material: ASA housing with optional aluminum alloy base

Additional Features:

  • Ultrasonic wind measurement (no moving parts)
  • Radar-based rainfall detection
  • Built-in heating function for cold environments
  • Optional GPS and electronic compass
  • Multi-parameter modular configuration
