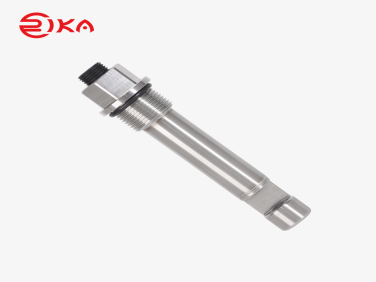

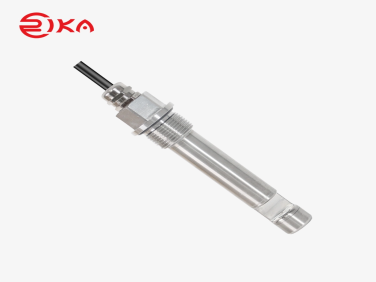

RK500-07 (Liquid cooling) Turbidity Sensor

  • NG # 04313-HW-RIK-002

The RK500-07 Liquid Cooling Turbidity Sensor is a high-precision optical instrument designed for continuous water turbidity monitoring. Utilizing infrared light and a 90° scattering method, it delivers accurate and stable measurements across a wide range of applications, including wastewater treatment, environmental monitoring, and aquaculture systems.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK500-07 Liquid Cooling Turbidity Sensor is an advanced water quality monitoring device engineered to measure turbidity using an optical detection principle. It operates by emitting infrared light (860 nm) into the water and detecting scattered light at a 90° angle, allowing precise evaluation of suspended particles without interference from water color.

Designed for demanding industrial and environmental applications, this sensor ensures reliable real-time monitoring of turbidity levels in freshwater systems. Its robust construction, typically made of high-grade stainless steel, provides excellent durability and resistance to harsh conditions. The sensor supports both analog (4–20mA) and digital (RS485) outputs, making it easy to integrate into various monitoring and control systems.

With fast response time, low power consumption, and high sensitivity, the RK500-07 is suitable for a wide range of applications including sewage treatment, river monitoring, aquaculture, and industrial water management. Its IP68 protection rating ensures long-term submersible operation, while its compact and user-friendly design simplifies installation and maintenance.

Specification

  • Model: RK500-07
  • Measuring Principle: Optical (90° scattered infrared light)
  • Light Source: 860 nm infrared (ISO7027 compliant)
  • Measuring Range: 0–10 NTU / 0–100 NTU / 0–1000 NTU / 0–4000 NTU
  • Accuracy: ±1% FS
  • Resolution:
    • 0.01 NTU (≤10 NTU)
    • 0.1 NTU (>10 NTU)
  • Response Time: ≤1 second
  • Output Signal: 4–20 mA and RS485 (simultaneous)
  • Power Supply: 7–30 VDC
  • Power Consumption: <0.2 W
  • Operating Temperature: 0°C to +60°C
  • Pressure Resistance: 0.8 MPa
  • Protection Grade: IP68 (fully submersible)
  • Material: 316L stainless steel
  • Installation: Submersible or pipeline mounting
  • Cable Length: Standard 5 meters
  • Storage Conditions: 10–60°C, 20–90% RH
