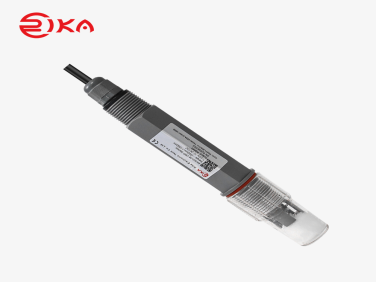

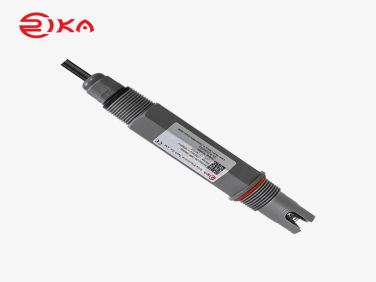

RK500-06 ORP Sensor Water Quality Monitoring Sensor

  • NG # 04320-HW-RIK-009

The RK500-06 ORP Sensor Water Quality Monitoring System from Rika Sensors is a high-precision electrochemical sensor designed for real-time measurement of oxidation-reduction potential (ORP) in water. Featuring a platinum electrode, wide measurement range, and IP68 protection, it ensures reliable and stable performance in harsh industrial and environmental conditions such as wastewater treatment, aquaculture, and chemical processing.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK500-06 ORP sensor is engineered to deliver accurate and continuous monitoring of water quality parameters, specifically oxidation-reduction potential, which is critical for assessing chemical reactions in liquids. Built with a durable structure and platinum ring electrode, the sensor offers high sensitivity, fast response, and long-term operational stability. Its integrated signal isolation and strong anti-interference capability make it suitable for demanding industrial environments where electrical noise and harsh conditions are common.

This sensor supports both analog (4–20 mA) and digital (RS485) outputs, allowing seamless integration into various monitoring and control systems. The robust IP68-rated design enables long-term submersion in water without compromising performance. Additionally, its simple installation and maintenance process make it a practical solution for continuous water quality monitoring in applications such as sewage treatment, river monitoring, reservoirs, and industrial wastewater systems.

Specification

  • Measurement Principle: Electrochemical (platinum ring electrode)
  • Measurement Range: -1500 mV to +1500 mV
  • Resolution: 0.1 mV
  • Accuracy: ±1 mV
  • Response Time: 5s (90%), 14s (98%)
  • Output Signal: 4–20 mA and RS485 (simultaneous)
  • Supply Voltage: 7–30 VDC
  • Power Consumption: <0.4 W
  • Operating Temperature: -5°C to +60°C (<0.6 MPa)
  • Ingress Protection: IP68 (fully submersible)
  • Stability: ≤1% per year
  • Maintenance: Clean monthly; calibration every 6 months
  • Storage Conditions: 10–60°C, 20–90% RH
  • Cable Length: 5 m (customizable)
