RK300-03A Indoor Carbon Dioxide Sensor CO2 Transmitter

  • NG # 04336-HW-RIK-025

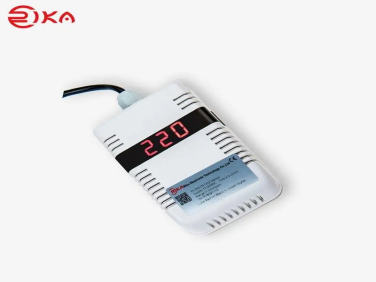

The RK300-03 CO2 Transmitter is an advanced air quality monitoring device designed to accurately measure carbon dioxide (CO2) concentration in indoor and outdoor environments. It uses NDIR (Non-Dispersive Infrared) technology to ensure high precision, fast response, and long-term stability, making it suitable for environmental monitoring, smart buildings, agriculture, and industrial applications.

Manufactured By :
Rika Sensor
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK300-03 CO2 transmitter is a high-performance gas detection sensor developed for reliable air quality monitoring. It operates based on NDIR infrared absorption technology, which allows accurate detection of CO2 levels without oxygen dependency, ensuring long service life and stable performance.

The device features a built-in temperature compensation system that improves measurement accuracy under varying environmental conditions. It supports multiple signal outputs, including 4-20mA, 0-5V, and RS485, making it highly flexible for integration into different monitoring systems.

With its fast response time, low power consumption, and excellent stability, the RK300-03 is widely used in smart buildings, environmental monitoring systems, greenhouses, warehouses, and livestock farming environments where air quality control is essential.

Specification

  • Measurement Principle: NDIR (Non-Dispersive Infrared)
  • CO2 Measurement Range: 0–5000 ppm / 0–10000 ppm
  • Accuracy: ±50 ppm + 2% reading @ 25°C
  • Supply Voltage: 5VDC / 12–24VDC
  • Output Signals: 4–20mA / 0–5V / RS485
  • Power Consumption: <0.25W
  • Warm-up Time: 3 minutes
  • Response Time: <20 seconds
  • Temperature Drift: ≤0.2% FS/°C
  • Stability: <±40 ppm/year
  • Repeatability: <±1% FS
  • Operating Temperature: -20°C to +60°C
  • Humidity Range: 15–80% RH
  • Storage Temperature: -40°C to +70°C
  • Housing Material: ABS plastic
