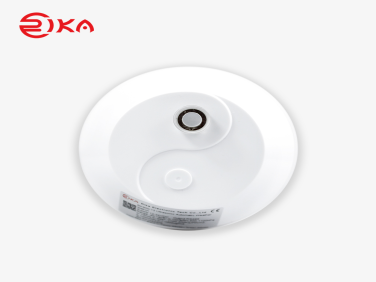

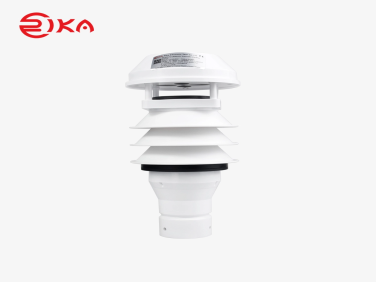

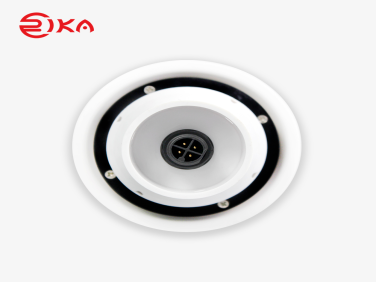

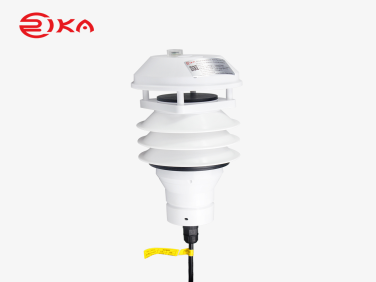

RK900-12 Ultrasonic Automatic Weather Instrument

  • NG # 04341-HW-RIK-030

The RK900-12 Ultrasonic Automatic Weather Instrument is a compact, all-in-one ultrasonic weather station designed to measure multiple environmental parameters including wind speed, wind direction, temperature, humidity, air pressure, and rainfall. Featuring low power consumption, high accuracy, and a maintenance-free design, it is ideal for agricultural, environmental, and industrial monitoring applications.

Manufactured By :
Regal Systems
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The RK900-12 Ultrasonic Automatic Weather Instrument is an advanced integrated meteorological monitoring solution developed for reliable and real-time environmental data collection. It combines multiple sensors into a single compact unit, enabling simultaneous measurement of key weather parameters such as temperature, humidity, wind speed and direction, atmospheric pressure, and rainfall. Designed with ultrasonic sensing technology, the device eliminates moving parts, ensuring long-term stability and minimal maintenance requirements.

This weather instrument is powered by a low-consumption chip, consuming less than 1.7W, making it highly suitable for solar-powered or battery-operated systems. Its rugged ASA engineering plastic housing provides durability and resistance to harsh outdoor conditions. Optional modules for solar radiation and illumination further enhance its functionality, making it particularly useful in agricultural meteorology, smart city infrastructure, and environmental monitoring systems. With easy installation and multiple communication outputs, it integrates seamlessly into various data acquisition systems.

Specification

Measurement Parameters:

  • Wind Speed: 0–70 m/s | Resolution: 0.1 m/s | Accuracy: ±3% FS
  • Wind Direction: 0–359° | Resolution: 1° | Accuracy: ±3°
  • Atmospheric Temperature: -40°C to +80°C | Resolution: 0.1°C | Accuracy: ±0.5°C
  • Atmospheric Humidity: 0–100% RH | Resolution: 1% RH | Accuracy: ±3% RH
  • Atmospheric Pressure: 300–1100 hPa | Resolution: 0.1 hPa | Accuracy: ±1 hPa
  • Rainfall: 0–200 mm/hr | Resolution: 0.1 mm | Accuracy: ±5%
  • Altitude: -500 to 9000 m | Resolution: 1 m | Accuracy: ±5%

Optional Parameters:

  • Solar Radiation: 0–2000 W/m² | Accuracy: ±5%
  • Illumination: 0–200,000 lux | Accuracy: ±5%
  • PM2.5 / PM10: 0–2000 μg/m³ | Accuracy: ±5% / ±8%
  • Visibility: 10–10,000 m | Accuracy: ±15%
  • Noise: 30–130 dB | Accuracy: ±3 dB

Technical Specifications:

  • Power Supply: 12–24 VDC
  • Power Consumption: <1.7 W
  • Output Signal: RS232 / RS485 (Modbus or NMEA-183), SDI-12
  • Operating Temperature: -20°C to +70°C
  • Protection Class: IP65
  • Dimensions: Φ110 × (217–298) mm
  • Weight: 0.39 kg
  • Material: ASA Engineering Plastic
