CLD - Chlorine Dioxide Sensor, Amperometric

  • NG # 04227-HW-SEN-006

  • MF # CLD502

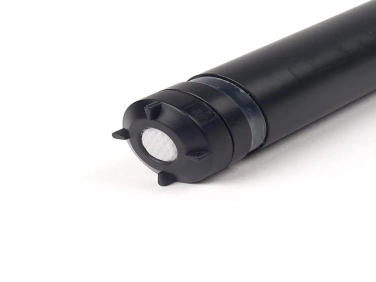

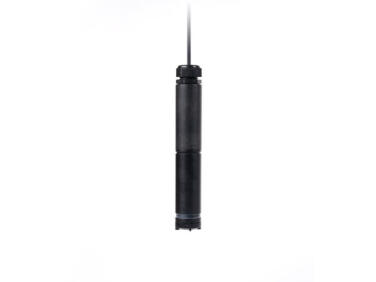

The CLD Amperometric Chlorine Dioxide Sensor is a reliable online sensor designed for continuous monitoring of chlorine dioxide levels in water treatment and disinfection applications. It uses amperometric technology and provides a direct 4–20 mA output for seamless integration with control systems, ensuring accurate and real-time measurement without the need for reagents.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The CLD sensor from Sensorex is engineered for precise chlorine dioxide measurement in industrial and municipal water treatment processes. Utilizing advanced amperometric sensing technology, it enables real-time monitoring and stable performance across varying operating conditions. The sensor features automatic temperature compensation, a long-life design with replaceable membrane components, and compatibility with flow cells and regulators for enhanced accuracy. It is widely used in disinfection systems where maintaining correct chlorine dioxide levels is critical.

Specification

Measurement & Performance

  • Measurement ranges: 0–2 ppm, 0–5 ppm, or 0–10 ppm chlorine dioxide
  • Continuous real-time monitoring capability
  • Amperometric measurement technology (no reagents required)

Output & Electrical

  • Output signal: 4–20 mA for direct integration with PLC/SCADA systems
  • Supply voltage: 12–24 V DC (minimum 250 mA)

Mechanical & Design

  • Replaceable membrane cap and electrolyte solution for extended sensor life
  • Large electrolyte reservoir for longer maintenance intervals
  • Cable length: approximately 3 meters (10 feet)

Environmental Conditions

  • Temperature range: 0°C to 45°C
  • Pressure range: up to 14.7 psig
  • pH range: approximately 5.5 to 8.5

Flow & Installation

  • Recommended flow range: 0.2 – 0.6 gpm (45–135 L/hr)

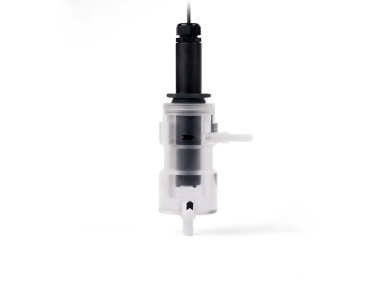

  • Compatible with FC72 flow cell for improved accuracy
  • Optional FM001 flow regulator for stable flow control

Features

  • Integrated automatic temperature compensation (ATC)
  • High stability and long operational life
  • Easy maintenance with replaceable components
  • One-year limited warranty

Applications

  • Industrial wastewater treatment
  • Municipal water treatment
  • Cooling water systems
  • Disinfection processes (food, beverage, and sanitation systems)
