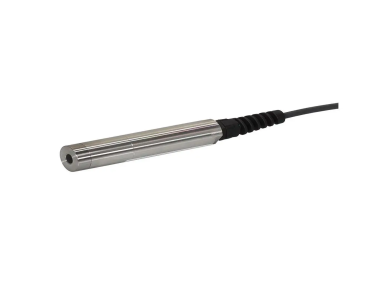

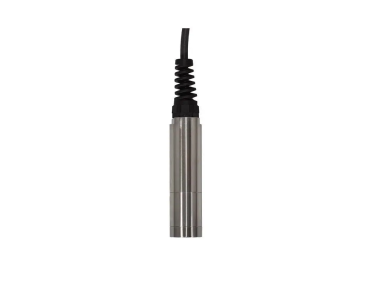

ODO8000 and ODO9000 - Lumin-S Optical Dissolved Oxygen Sensors with Digital Communication

  • NG # 04229-HW-SEN-008

  • MF # ODO8000 + ODOA81-1

The Lumin-S Optical Dissolved Oxygen Sensor is a low-maintenance, high-accuracy DO sensor using optical luminescence technology. It offers plug-and-play operation with no calibration required, long service life, and seamless Modbus RS-485 digital communication for easy system integration in industrial and environmental monitoring applications.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Lumin-S Optical Dissolved Oxygen Sensor with Digital Communication is a smart optical dissolved oxygen (DO) sensor designed for accurate and reliable measurement in water and wastewater applications. It uses luminescence-based optical technology to deliver stable readings without drift or dependency on flow conditions.

Unlike traditional electrochemical sensors, it requires minimal maintenance since it has no membranes, electrolytes, or anodes. The sensor features built-in digital communication (Modbus/RS-485), enabling direct integration with PLC systems for industrial automation.

Specification

Measurement & Performance

  • Measurement Principle: Optical luminescence method
  • Measurement Range:
    • 0.00 to 20.00 mg/L
    • 0.00 to 20.00 ppm
    • 0 to 200% saturation
  • Accuracy:  ±0.1 mg/L, ±0.1 ppm, ±1%
  • Response Time: 90% in less than 60 seconds
  • Measurement Interval: Greater than 5 seconds

Temperature & Environmental

  • Temperature Range: 0 to 50°C
  • Temperature Accuracy: ±0.5°C
  • Temperature Compensation: 10K NTC
  • Maximum Pressure: 5 bar (72.5 PSI)
  • Protection Rating: IP68

Electrical & Communication

  • Signal Output: Modbus RS-485 digital communication
  • Power Supply: 12V (±10%)
  • Power Consumption: Approximately 1 W

Mechanical & Construction

  • Body Material Options:
    • 316 Stainless Steel (ODO8000)
    • Titanium (ODO9000)
  • Cable Length: 10 meters (33 ft)
  • Dimensions: 25 mm diameter × 146 mm length
  • Weight: Approx. 450 g (with cable)

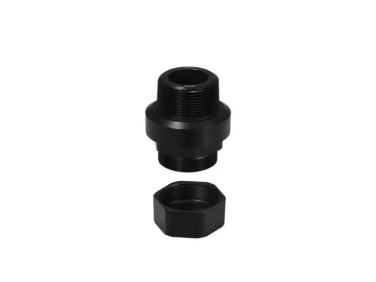

  • Mounting: Optional 1″ NPT fitting

Maintenance & Operation

  • No calibration required (data stored in sensor cap)
  • No membranes, electrolytes, or anodes required
  • Optical sensing cap replacement interval: 1–2 years
  • Suitable for low or no flow conditions

Additional Features

  • Plug-and-play operation
  • Stable measurements with no drift
  • Compatible with PLC and industrial control systems
  • One-year limited warranty
