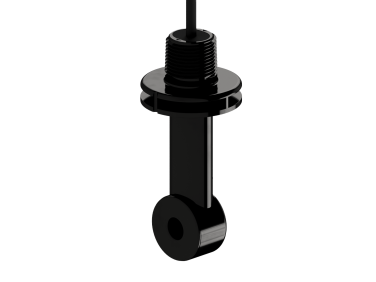

ITCS3020 - Smart General Purpose Noryl Toroidal Conductivity Sensor

  • NG # 04230-HW-SEN-009

  • MF # ITCS-3020

The ITCS3020 Smart General Purpose Noryl Toroidal Conductivity Sensor is a durable, low-maintenance sensor designed for accurate conductivity measurement in demanding industrial environments. Featuring a corrosion-resistant Noryl body, wide measurement range, and smart digital communication options (4–20 mA or Modbus), it ensures reliable performance and easy integration into various process systems.

Manufactured By :
Sensorex
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The ITCS3020 is a smart toroidal (inductive) conductivity sensor engineered to provide stable and accurate measurements in applications where traditional contacting sensors may fail due to fouling or corrosion. Its robust Noryl construction offers excellent chemical resistance and thermal stability, making it suitable for a wide range of industrial processes.

This sensor supports both submersion and inline installation, providing flexibility for different system setups. With built-in temperature compensation using a Pt1000 RTD element and digital communication capabilities, it simplifies calibration, configuration, and monitoring. The ITCS3020 is designed to reduce maintenance requirements while improving process visibility and operational efficiency.

Specification

General

  • Sensor Type: Toroidal (Inductive) Conductivity Sensor
  • Model: ITCS3020 Smart General Purpose
  • Body Material: Noryl (high chemical and corrosion resistance)
  • Design: Robust single-body construction

Measurement

  • Conductivity Range: 150 to 2,000,000 µS/cm
  • Resolution:
    • 0.2  µS (0.2–2000  µS/cm)
    • 2 µS (2000–100,000  µS/cm)
    • 20 µS (>100,000 µS/cm)
  • Accuracy (Conductivity): ±5 µS or 2% of reading

Temperature

  • Temperature Compensation: Pt1000 RTD (Automatic)
  • Temperature Resolution: 0.05°C
  • Temperature Accuracy: ±0.5°C typical (±1.0°C max)
  • Max Operating Temperature: up to 80°C (material stability up to 105°C)

Mechanical

  • Process Connection:
    • Submersion: 3/4" MNPT
    • Inline: Compatible with FC95C flow cell
  • Max Pressure: 150 psig
  • Response Time: <10 seconds (95% of change)
  • Cable Length: Standard 20 ft (6 m), customizable

Electrical

  • Output Options: 4–20 mA or Modbus RS485
  • Power Supply:
    • 4–20 mA mode: 23–36 VDC
    • Modbus mode: 7–36 VDC
  • Loop Current Accuracy: 32 µA

Features

  • Resistant to corrosion, coating, and fouling
  • Wide measurement range for multiple applications
  • Easy configuration and calibration via free software
  • Suitable for both inline and submersion installation
  • Provides conductivity and temperature data (Modbus models)
